Easy installation using the plug & play principle

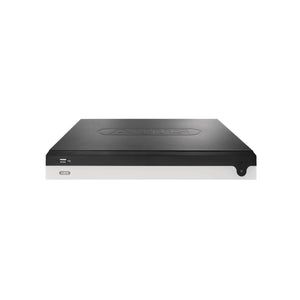

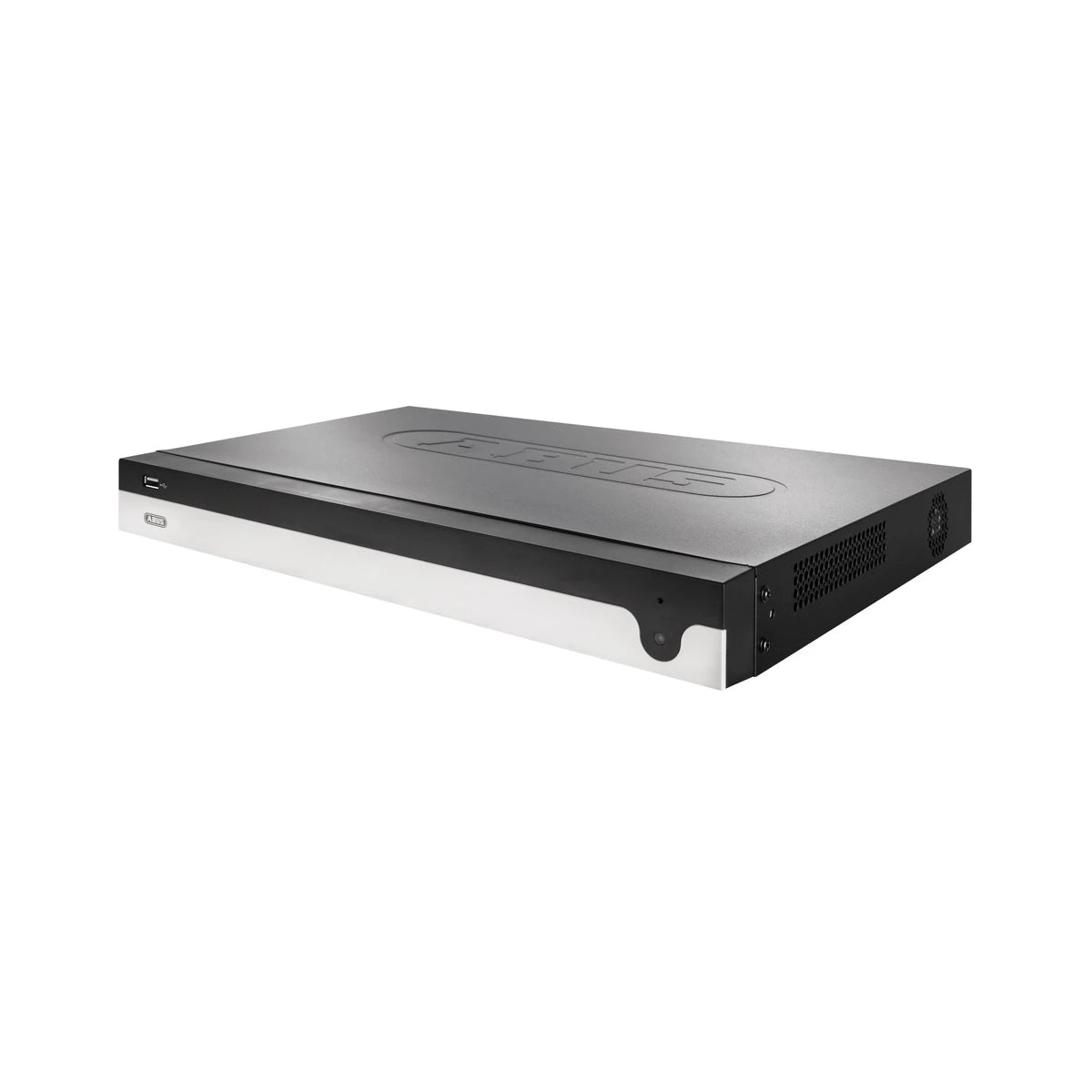

With the 8-channel analog HD video recorder HDCC 90013 in ABUS design, every recording solution is immediately ready for use – whether for retrofitting or new projects with analog HD technology. As soon as the connection between camera and recorder is established via a coaxial cable or a 2-wire connection (accessory: 2-wire analog HD transmission set), video images can be provided in real time and for recording.

Double storage space through data compression
Compression of incoming image data using H.265 technology makes twice the use of storage space. Up to 2 x 12 TB of hard drive storage can be installed, providing ample storage capacity for extended recordings and any application.

Operation is very simple and intuitive
The analog HD recorder offers various operating options. Video data can be analyzed via a local monitor, a web browser, the intuitive ABUS CMS software, and the ABUS Link Station app for Android/iOS.

Automatic object recognition
The recorder reliably distinguishes relevant movements (people, vehicles) from interfering influences (branches, light, etc.) – and minimizes the number of unnecessary motion alarms.

Pentaplex support
Supports TVI (max. 8 MPx), CVI (max. 1080p), AHD, CVBS (PAL/NTSC) signals on all BNC inputs
Supports two additional IP channels up to a maximum of 8 MPx.
Compatible with ABUS IP cameras. See the compatibility list in the download area.

Product benefits:

• Pentaplex support: Recording and live display of all channels up to 8 MPx (selected ABUS IP cameras, TVI, CVI, AHD, CVBS)

• Use storage space twice as efficiently: Data compression with H.265
• 4K Ultra HD HDMI port for lossless viewing of connected cameras on a 4K monitor

• Perfect for upgrading existing systems to higher resolution
• Long cable lengths up to a maximum of 500 m
• USB 3.0 interface for fast data export
• Easy to use: control via local monitor, browser, app or ABUS CMS software
• Continuous recording: 2x HDD up to 12TB

• Support for a maximum of 2 IP cameras

• Audio compression: G.711u
• Audio bitrate: 64 kbit/s
• Recording bitrate: 32 kbit/s up to 10 Mbit/s
• HD-TVI video channels: 4
• Dimensions (W x D x H): 380 x 320 x 48 mm
• Alerting methods: Audible warning signal, OSD signal, email
• Views: 1 / 4 / 6 / 8 / 9
• Audio: Line In: 4 x RCA (2.0 V pp, 1000?), Audio Out: 1 x RCA (1000 ?)
• Live view resolution: VGA: 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz HDMI: 4k (3840 x 2160) / 30Hz, 2K (25960 x 1440) / 60Hz, 1920 x 1080 / 60Hz, 1280 x 1024 / 60Hz, 1280x720/60Hz, 1024x768/60Hz
• Recording modes: VCA (Tripwire, Intrusion Detection), Motion detection, alarm, motion detection and alarm, motion detection or alarm, schedule, manual
• Battery – Type: CR1220 / AAA
• Operating mode: Triplex
• Operating temperature: -10 to +55 °C
• Data backup: 1 x USB 2.0, 1 x USB 3.0
• Maximum humidity: 90%
• Power consumption: 20 W
• Compliant with the Sarkozy Law (only valid for France): Yes

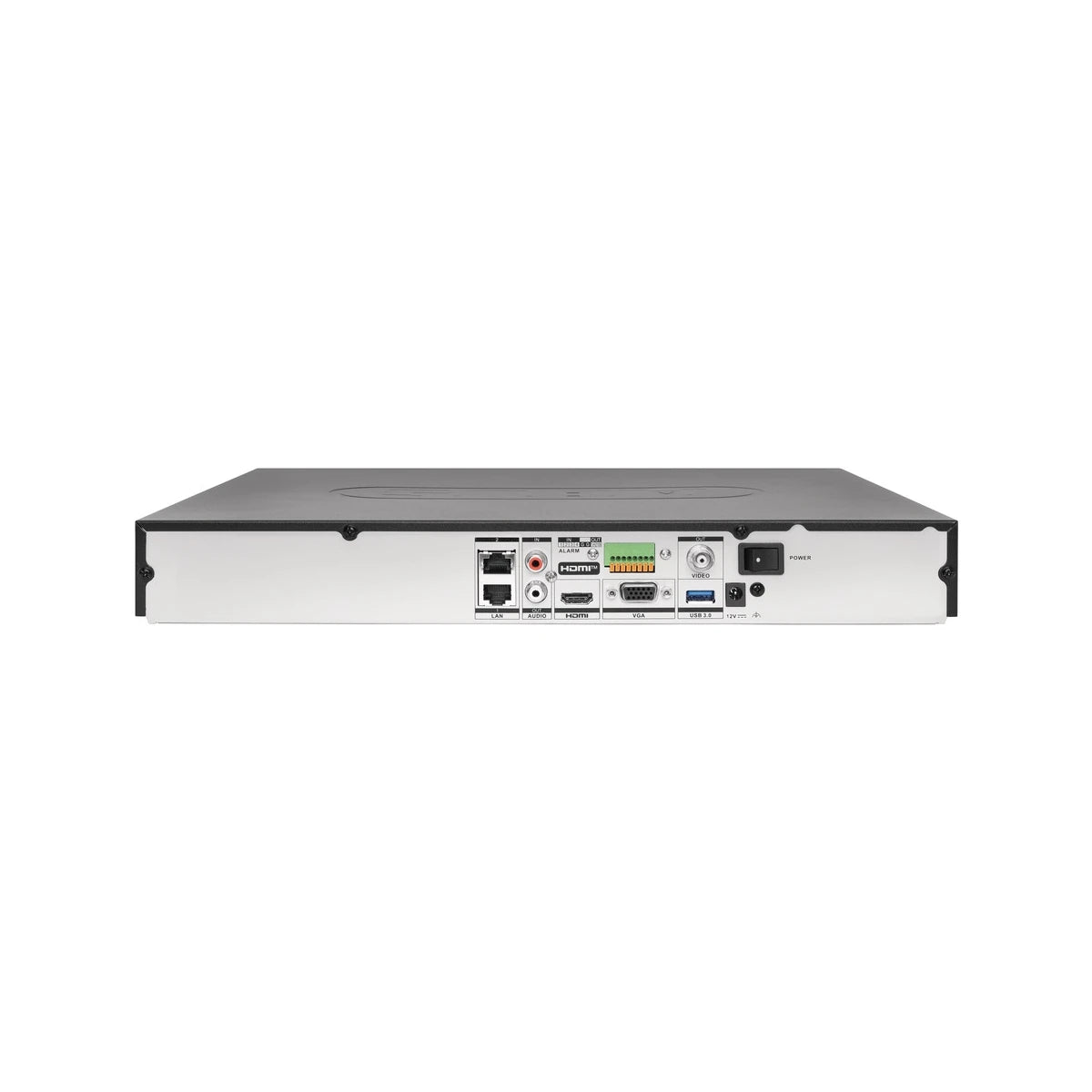

• Monitor outputs: 1 x HDMI, 1 x VGA, 1 x Main BNC
• Net weight: 1.16 kg
• Total network throughput (input/output): 96 Mbit (0 Mbit/96 Mbit)
• Relay outputs: 4
• Number of HDDs: 2
• HDMI Out: Yes
• Technology: AHD, CVBS, HD-CVI, HD-TVI, IP
• Power supply AC: 100 – 240 V
• Storage medium: 2 x SATA HDD (max. 10 TB)
• Instructions in German, English, French Dutch, Danish, Italian
• OSD languages: German, English, French, Dutch Danish, Italian
• Control: Mouse, PC software, integrated web server
• Search modes: Smart Search, VCA, Event, Date & Time
• Video compression: H.265
• Pre-/post-alarm memory: 0-2 / 5-900
• Network connection: 1 x RJ45 10/100/1000 Mbps
• User levels: 2
• Network functions: DVR: NAS storage, IP-SAN Storage/recorder software: Live view, playback, Data export/Web interface: Live view, playback, data export, log files, Settings/Apps: Live View, Playback
• Simultaneous network access: 64 channels
• Mobile access: ABUS Link Station Lite / Pro (Apple iOS) & Android)
• DDNS: Yes
• Web server: Yes
• PTZ control: Coaxial
• Sabotage surveillance video: Yes
• Camera inputs: 8 x BNC (HD-TVI, HD-CVI, AHD, Analog CVBS)
• Camera outputs: 1 x BNC (Analog CVBS)
• Network cameras: See compatibility list in the ABUS download area
• Alarm inputs (NO/NC): 8
• NTP: Yes
• Software: ABUS CMS Software
• Hardware Watchdog: Yes
• Recording resolution: 2MPx @ 25 frames/s 3MPx @ 18 frames/s, 8MPx @ 8 frames/s
• Total video channels: 10
• Analog video channels: 8
• HD-SDI video channels: 0
• Video channels IP: 2
• Total frame rate (PAL): 200
• Network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS
• HDMI output resolution:   4k (3840 x 2160) / 30Hz, 2K (2560 x 1440) / 60Hz, 1920x1080 / 60Hz, 1280x1024 / 60Hz, 1280x720 / 60Hz, 1024x768 / 60 Hz

• 1x 8-channel digital recorder
• 1x USB wireless mouse
• 1x hard drive cable
• 1x server cabinet bracket
• 1x Mounting material
• 1x Quick Start Guide
• 3x power cables
• 1x power supply
