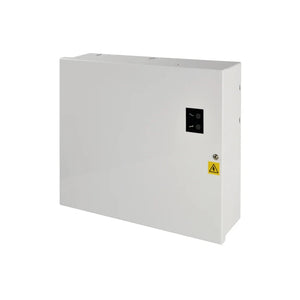

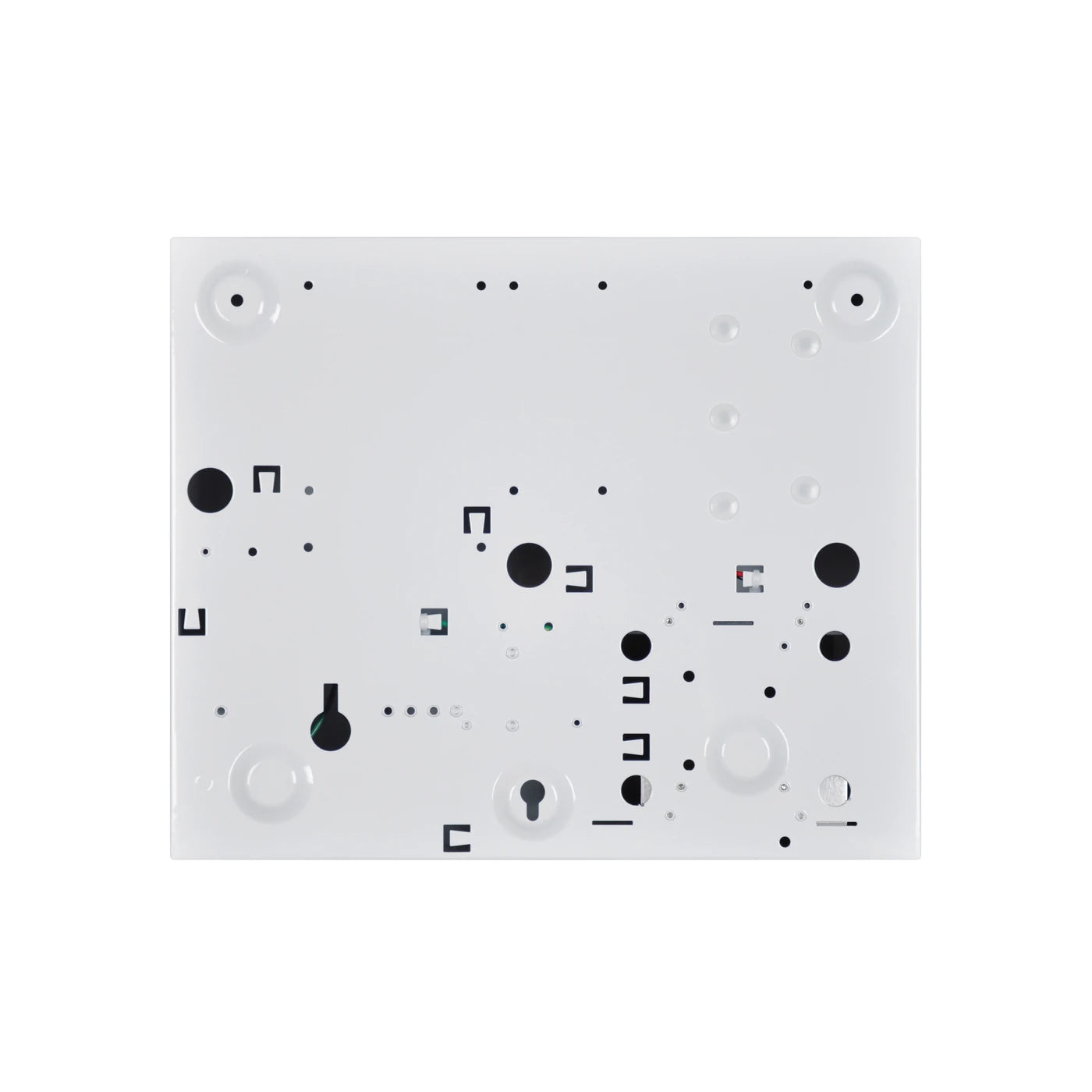

The ABUS ACAC00073 power supply unit transforms 230 V AC to 13.8 V DC. It is therefore suitable as a central power supply for locking systems and other security systems. The ACAC00073 operates on both 230 V mains voltage and a 12 V/7 Ah backup battery. Battery charging electronics are integrated into the robust metal housing. The power supply unit is designed for indoor installation. Pre-cut openings on the sides of the housing allow for neat cable routing. An LED indicator displays the power supply unit's status.

Product benefits:

• Regulated output signal of 13.8 V DC voltage
• Electronic overload protection
• Additional 1.0 A charging current for emergency power battery (during initial charge)
• LED indicator lights for mains power and fuse
• Robust metal housing
• VdS-certified, maintenance-free battery

• Dimensions (W x H x D): 338 x 281 x 86 mm
• Output protection: 8x F3.15 A, 20mm
• Exit: 3
• Output voltage DC: 13.4 – 14.2 V when mains powered / 10.0 – 12.3 V when battery powered
• Housing material: Metal
• Charging electronics: 12 / 7 V / Ah
• Material type: Metal housing
• Net weight: 3.26 kg
• Emergency power supply: Suitable replacement battery BT2070
• Sabotage monitoring: lid switch
• Power supply AC: 230 V
