4 voltage-free output contacts

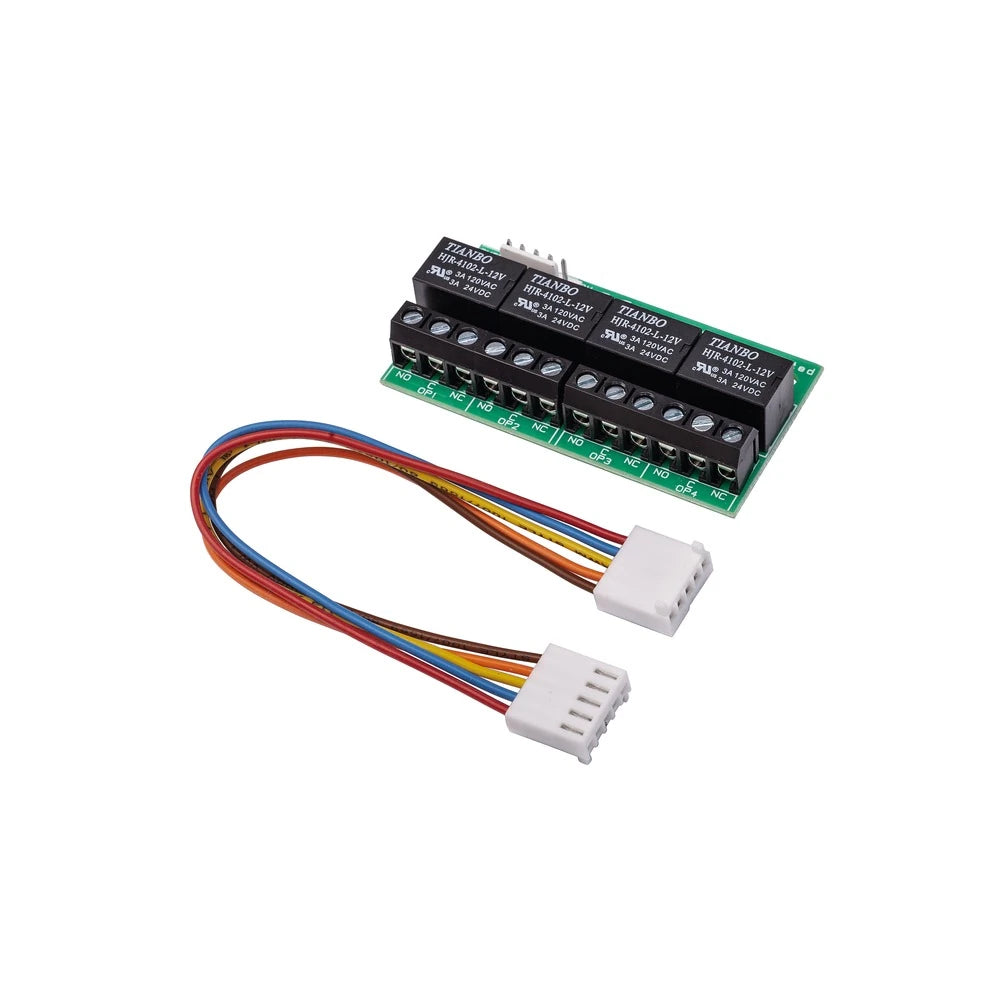

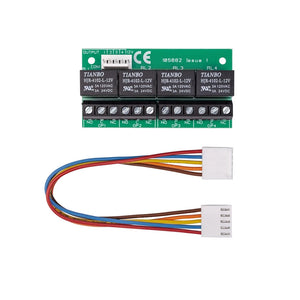

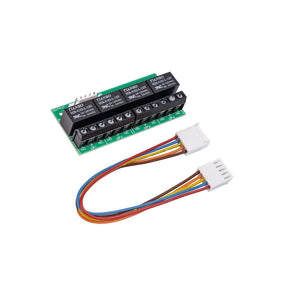

About the Secoris The BUS wire extension module or the power supply provides the 4-way relay board with 4 voltage-free output contacts for the Alarm control panel and other devices ready. Each by converting the Open-collector outputs of the BUS module into a relay output. The AZMO60010 circuit board is inserted directly into the respective BUS module. It then provides increased switching capacity (1 A @ 30 V DC/120 V AC) for the outputs of the module, for example for actuators with high power consumption (e.g., roller shutter control). The wiring effort becomes significantly greater. minimized, since the actuators do not need to be connected to the central unit.

Configure outputs, trigger actuators
The Outputs can be configured to activate at a specific time. An event (e.g., alarm, fire, robbery, etc.) will be activated. Furthermore, They enable the switching and triggering of actuators for the Implementation of smart home scenarios and the integration of Alarm system integrated into building automation. Manual triggering of the Scenarios, e.g. by pressing a button on the control panel, by remote control or An app is also possible.

Product benefits:

• Expands the alarm control panel with powerful relay switching outputs.

• Conversion of open-collector/drain transistor outputs to relay outputs
• activation the relay switching outputs through predefined events (alarm, fire, ambush) and triggering the desired response (e.g., external siren) (triggers, roller door opens, light comes on)
• Enables the switching of actuators to control smart home scenarios and forms an interface to building automation.
• Relay switching capacity 1 A each (30 V DC/120 V AC)

• Dimensions (W x H x D): 63 x 33 x 23 mm
• Outputs: 4 relay outputs NO/NC, potential-free
• Power supply DC: 12 V
• Current consumption: 80 mA
• Operating temperature: -10 °C to +55 °C

• 1x Secoris 4-way relay board
