Secoris alarm system easy to use

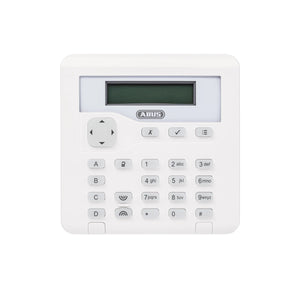

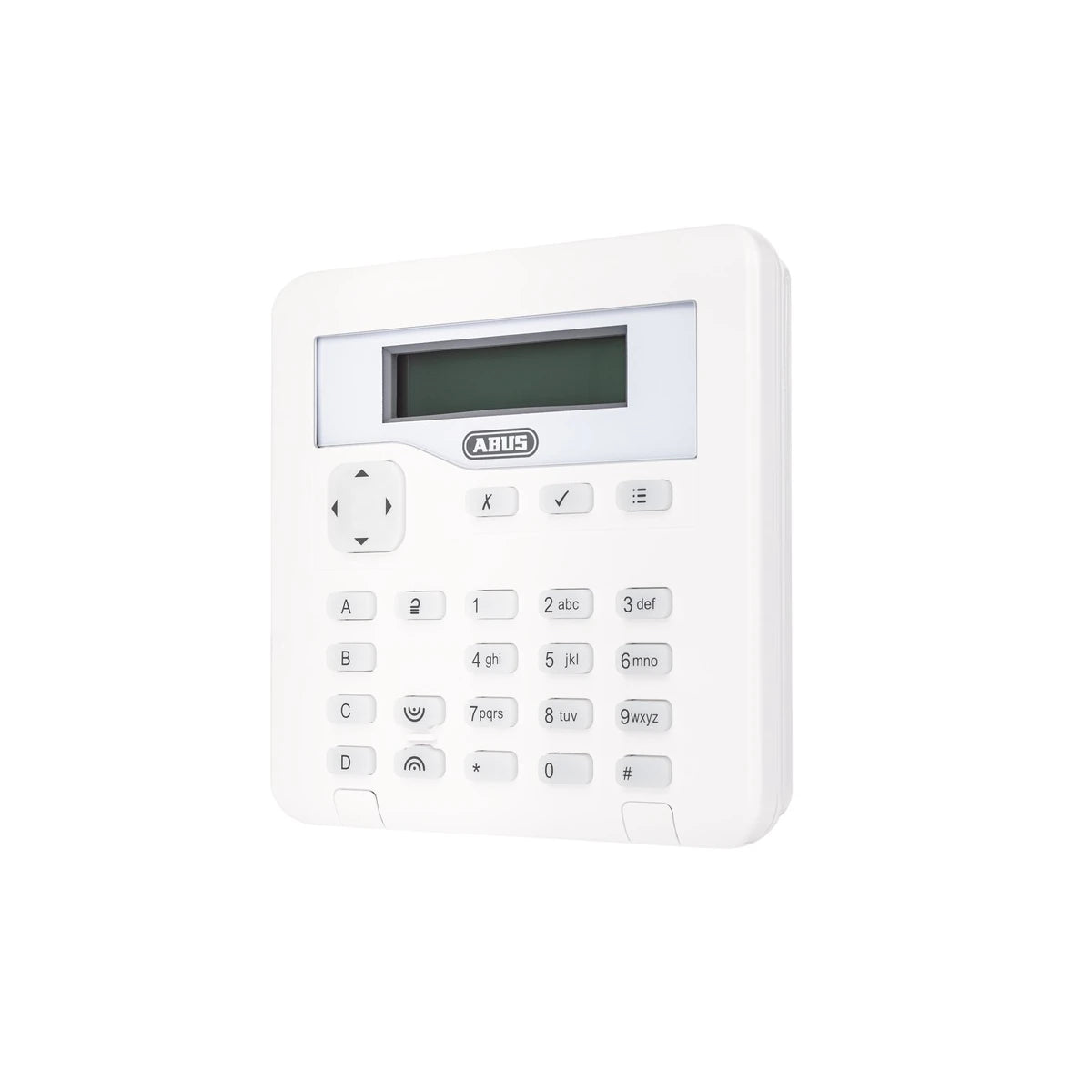

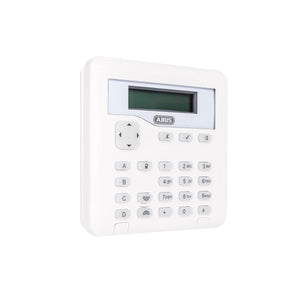

The Secoris intrusion detection system is operated using the BUBE60020 BUS control unit. Armed and disarmed: simply via chip key (RFID transponder) or by entering the PIN code on the keypad. Thanks to integrated A BUS interface can be used for an external keypad reader. (sharpening device/ASE) must be connected to protect the system before the To operate access to the building. When a locking element is connected or... Latch switch contact on the control unit (on-board detector group connection, (Switching output), a forced access is realized (no access) (with sharpened system).

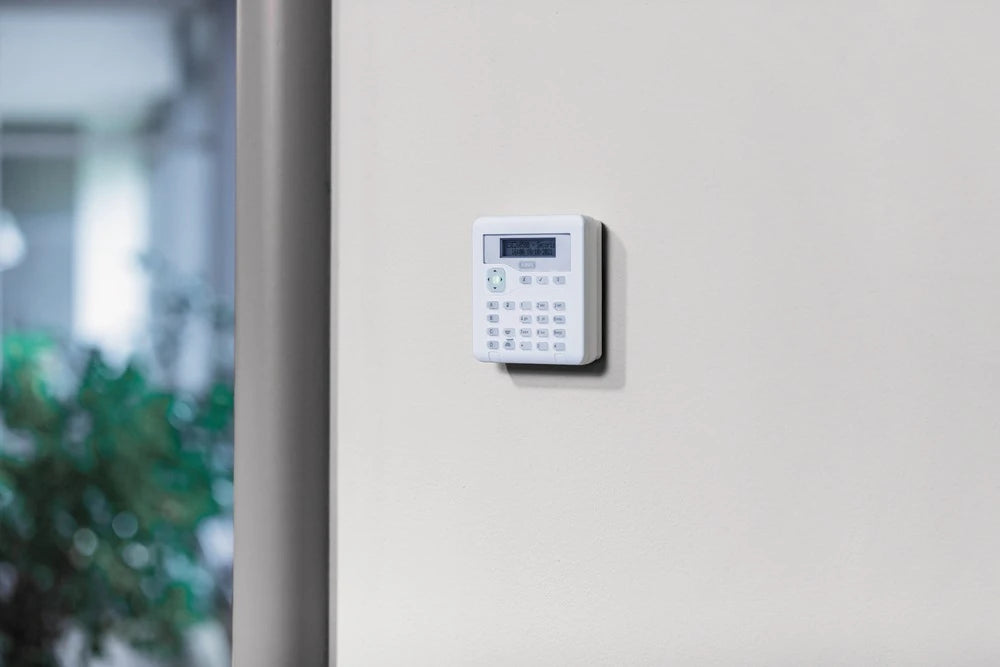

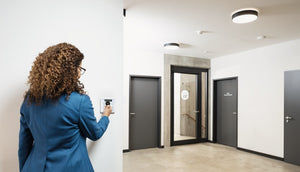

Easy installation in the entrance area
The control unit is connected via the BUS line of the intrusion alarm control panel. wired and powered via this connection. This allows the Control panels can be flexibly located in different parts of the building, for example Install them floor by floor.

LED status indicator
The system's status is easily readable on the colored LED display.

It blends discreetly into the building.
The brightness of the backlight can be individually adjusted and also switched off.

High safety standards & certification
When using appropriate transponders (Mifare Desfire EV1 or...) (Optionally Mifare Classic) RFID data transmission takes place. It is protected against unauthorized access. And an external keypad reader is secured via a highly secure A connection (OSDP standard, AES128 encryption) is established. The control unit is certified according to DIN EN 50131 Grade 3.

Product benefits:

• Control unit with keypad and RFID reader / proximity reader (Mifare-Desfire) for indoor use

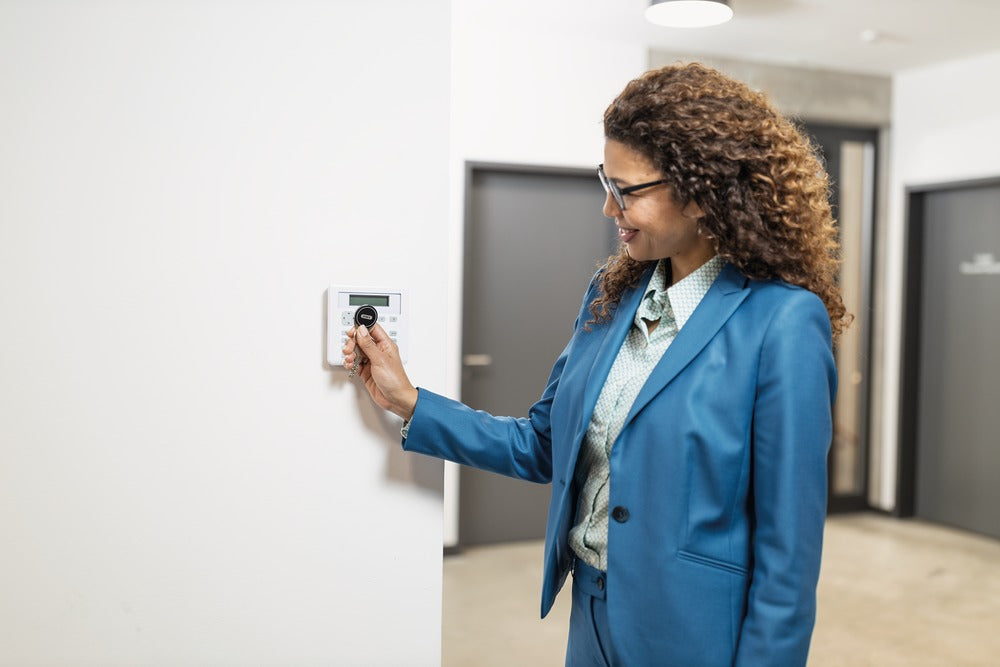

• For convenient arming/disarming of the control unit via contactless means RFID transponder (chip key) or PIN code when leaving/entering of the building
• Read-proof RFID communication between transponder and control unit via Mifare Desfire EV1 possible - optionally also via Mifare Classic

• Individually adjustable backlight brightness
• Integration into the Secoris alarm center (ESEZ60500, ESEZ70500): Sharp/blurry via proximity chip, user assignment (1 Chip key/transponder)

• Connection for external keypad reader (ABUS Art.No.: BUBE60100) via RS485 bus (OSDP security standard: secure connection, (AES128 encrypted)

• Switching of sub-areas is possible, e.g., individual departments separated from each other.
• Power supply via the control unit's BUS line or an external power supply is possible.
• Up to 50 control units per Secoris system/control center are possible.

• EN 50131-1 Grade 3 certified

• Housing: ABS
• EN: Grade 3
• Dimensions (W x H x D): 128 x 128 x 29 mm
• Connections: RS485 bus, screw terminal for additional tamper contact
• Outputs: 1 transistor switching output

• Integrated siren: Yes
• Reader type: Mifare DESfire EV1/EV2, Mifare Classic (optional)

• Maximum humidity: 93%
• Operating temperature: -10 °C to +55 °C
• Mounting location: Surface-mounted
• Net weight: 0.2 kg
• Sabotage monitoring: Yes
• Switching outputs: No
• Power supply DC: 12 V
• Current consumption: 58 mA
• Environmental class: II
• Certifications: EN 50131 Grade 3, VSÖ GS-H
