FLEXIBLE & SECURE: EXPAND SECORIS ALARM SYSTEM WITH WIRELESS DETECTORS

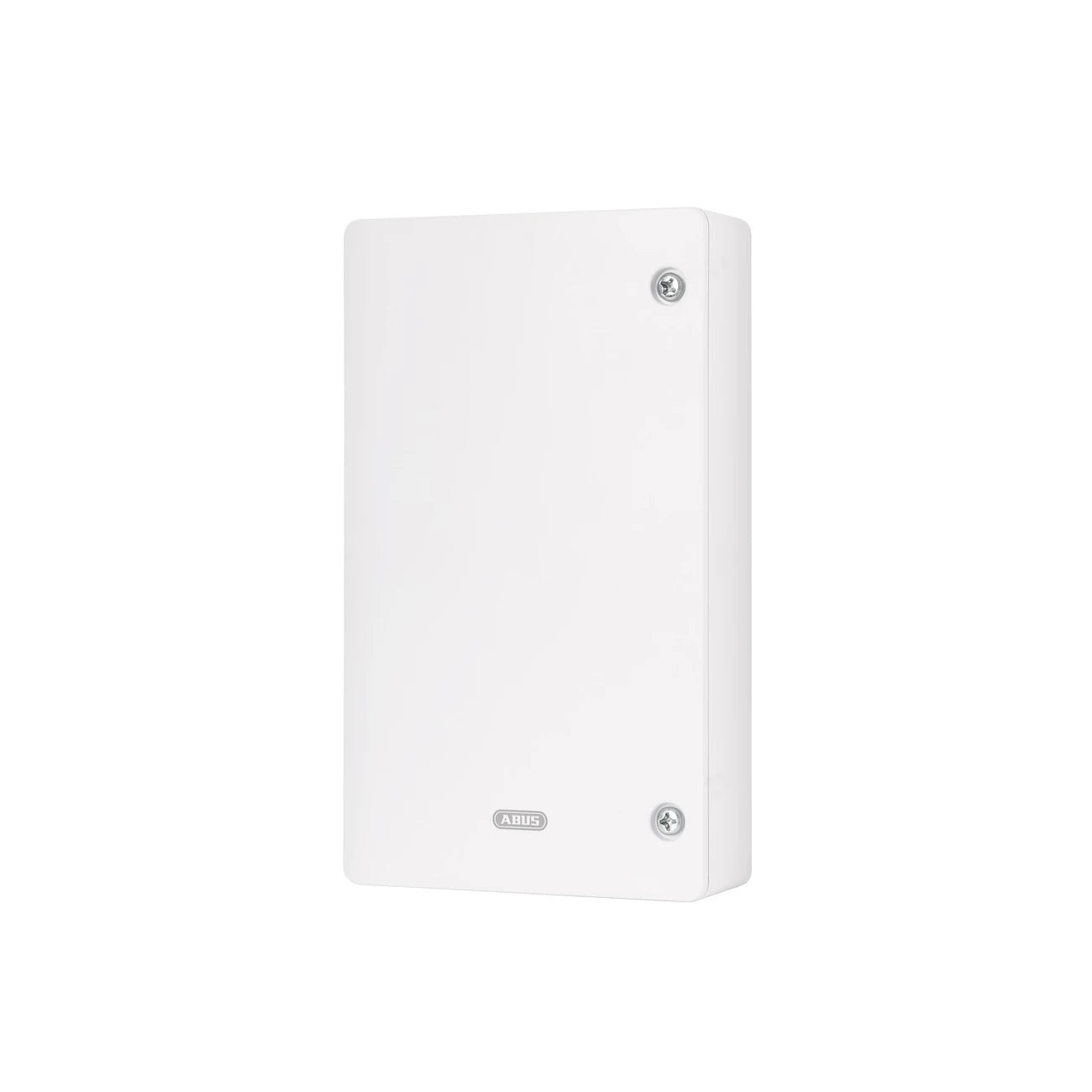

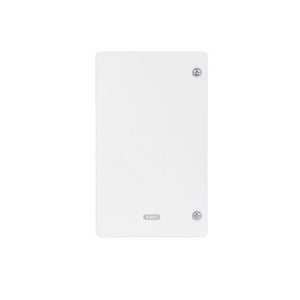

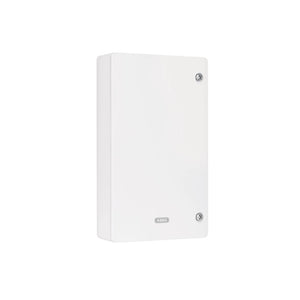

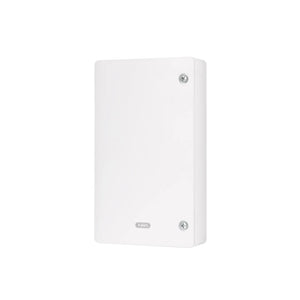

The BUMO60030 radio expansion module is used to integrate radio detectors into the ABUS Secoris intrusion alarm control panel.

EMA can be expanded flexibly
The The Secoris BUS radio extension integrates up to 30 ABUS radio detectors into the system. Intrusion detection system. This also allows existing Secoris systems to be used. Expanding alarm systems, e.g., in extensions and new buildings. With components such as e.g. wireless motion detectors or PIR sensors, glass break detectors, etc.

Simple wireless connection
The Quick and clean installation of the wireless detectors is achieved without structural modifications. Measures thanks to wireless signal transmission via the module. Supported through service and diagnostic functions including remote maintenance, e.g. radio testing, Pairing/detector settings on the control panel, device finder for later use Configuration, OTA update and settings without the notification expiring.

Secure, stable wireless transmission
The Secoris radio defies AES128 encryption (standard as in Online banking) and replay protection against any manipulation. With The radio mode offers duplex antennas and a 4-channel frequency band. interference-free, bidirectional transmission with a long range. To To minimize interference, use the frequency range 868.0 - 868.5 MHz. You can choose between 4 channels.

Compatibility and Retrofit
Over The radio extension also includes Secvest radio pagers (868.6625 MHz) with the Can be used with a Secoris control unit. Also compatible with mixed operation using Secoris detectors. (868.0 - 868.5 MHz), for example for modernizing an existing Secvest Alarm system upgrade by replacing the control unit.

Simply wire and install

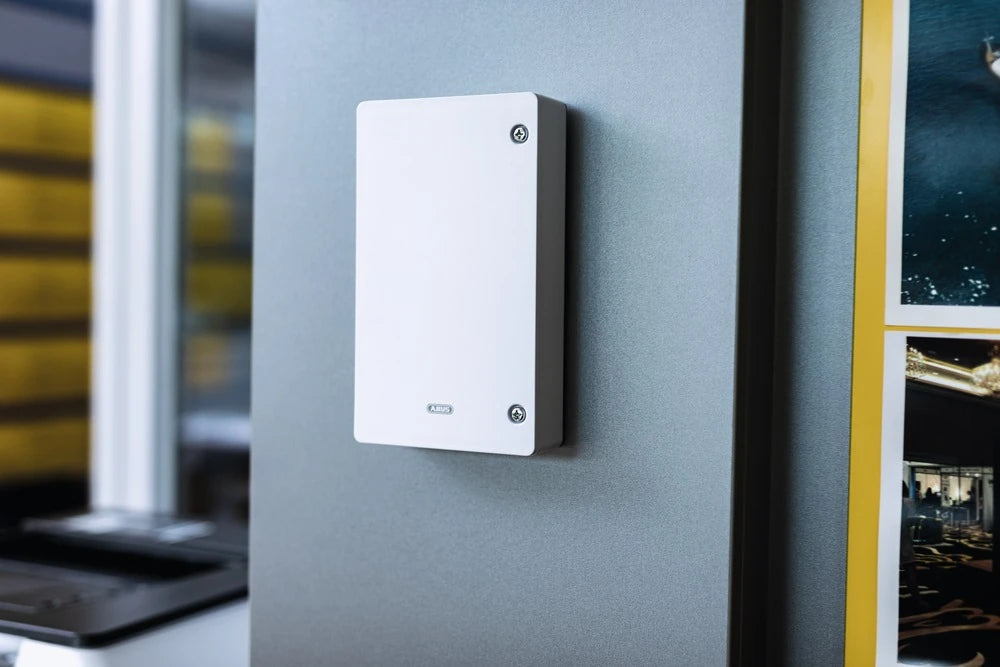

The wireless extension is easily and quickly integrated into the Secoris central unit via BUS wiring and optimally positioned.

Product benefits:

• Expansion module for the Secoris burglar alarm system for Integration of up to 30 ABUS wireless detectors and components
• For simple protection of areas where Wired detectors not possible or only with great difficulty (e.g. structural reasons). Changes) are installable
• Configurable for 10 to 30 detector groups (10 each) (One bus seat is occupied by reporting groups)
• Interference-free, bidirectional Secoris radio with high Extended range thanks to duplex antenna technology and flexible channel selection (4-channel frequency band)
• Wireless connection in Secoris wireless mode, AES128 encrypted (Standard as in online banking) and replay-protected
• Mixed operation of radio extensions with Secoris radio mode and Secvest wireless configuration possible in a Secoris system
• Efficient installation, remote diagnostics and maintenance Trained wireless detector via Secoris wireless mode, including device finder and wireless test. Detector configuration on the BUS control panel, OTA update of the detector firmware, etc.
• Up to 50 BUS components (e.g., radio extensions) flexibly Integrate it into the Secoris control unit via the system bus, without complex procedures. Rewiring
• Firmware of the wireless extension can be updated from the central unit. via the system bus line
• Sabotage monitoring (lid and wall breakage contact), EN 50131 Grade 2 certified

• Dimensions (W x H x D): 144 x 230 x 44 mm
• Connections: RS485 bus
• Housing material: ABS
• Maximum humidity: 95%
• Modulation: 2FSK
• Mounting location: Surface-mounted
• Net weight: 0.39 kg
• Emergency power supply: via system bus
• Maximum range receive/transmit (open field): 900 m
• Sabotage lines: 2
• Sabotage monitoring: Yes
• Power supply DC: 12 V
• Voltage monitoring: Yes
• Current consumption: 40 mA
• Power consumption in standby mode: 0.18 W
• Power consumption: 0.48 W
• Radio power: 10 mW
• Operating temperature: -10 °C to +55 °C
• Radio frequency 2 [MHz] 868.23
• Radio frequency 3: 868.37 MHz
• Radio frequency 4: 868.51 MHz
• Certifications: EN 50131 Grade 2
