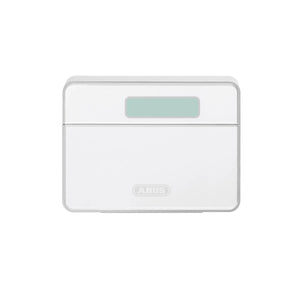

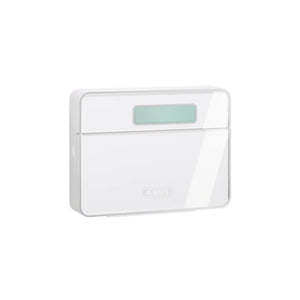

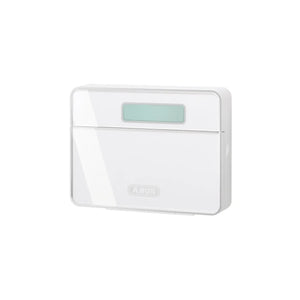

ABUS analog telephone dialer
When an alarm is triggered in the security system, the control panel activates the AZ6301 PSTN dialer , which forwards the necessary information to up to four programmable telephone numbers. The analog voice dialer transmits two pieces of information: an identification text and an event text. The identification text contains general data (name, address), while the event text describes the events predefined by the operator (burglary, fire, medical emergency, system malfunction, etc.). In the event of an alarm, the dialer's four inputs activate the corresponding event text. The AZ6301 is approved throughout Europe and, with its elegant design, perfectly complements the Terxon control panel.

• Number of voice messages: 4
• Text length: 40 seconds maximum (total)
• Alarm inputs: 4
• Dialing method: LD or DTMF
• Alarm repeat: yes
• Remote receipt: yes
• Postal approval: Europe-wide
• Current consumption: max. 70 mA
• Operating voltage: 11.5 to 14 VDC
• Dimensions (H x W x D): 150 x 104 x 30 mm
