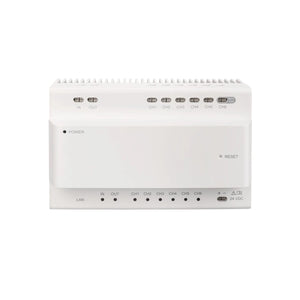

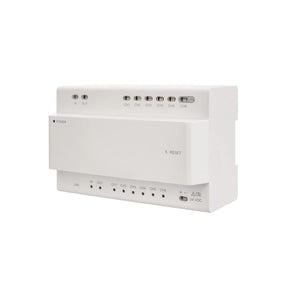

The ABUS 2-wire distributor TVHS21310 establishes communication between the 2-wire video module TVHS21010 and the 2-wire indoor station TVHS21210 . The distributor is a necessary component for installing the ModuVis door intercom system with 2-wire technology.

Completely modular, extensively expandable
A clear advantage: Once the basic configuration with video module, indoor station (touch monitor), and 2-wire distributor (necessary for 2-wire installation) is set up, additional modules and monitors can easily be added to the system depending on the number of apartments and on-site requirements. This allows for up to 49 doorbells – with one monitor integrated for each apartment. Regardless of the chosen video module and monitor variant (2-wire or IP/PoE/WLAN), the systems are compatible with each other.

Product benefits:

• 2-wire distributor for the ModuVis door intercom system
• Required for installation with 2-wire video module and 2-wire indoor station

• Dimensions (W x H x D): 144 x 90 x 65 mm
• Connections: 1 x DC, 8 x Bus I/O
• Network connection LAN: RJ45 10M/100M self-adaptive
• Power supply DC: 24 V
• Current consumption: 2,500 mA

• 1x 2-wire splitter for video module
• 1x Quick Start Guide
• 1x Safety instructions
