The wAppLoxx Pro wall reader set ACSE00021 ideally expands the application areas of the digital access control system to include locking and control technology. Electronic door openers, motorized locks, electronic barriers, or gates: the wall reader reliably controls all important access points. The special added value: as part of the wAppLoxx Pro system, the wall reader is accessible via an app – allowing, for example, electronic garage doors or existing motorized locks to be controlled smartly and at any time via the app – even remotely. The high-quality, scratch-resistant glass front identifies access authorizations by reading the locking medium and provides the user with visual and audible feedback.

Product benefits:

• Ideal for controlling electronic door and gate drives, door buzzers, elevators, barriers, roller shutters, turnstiles
• Wall Reader as RFID reading unit with encrypted BUS connection to the control unit (wAppLoxx Pro Bridge Box)
• High level of tamper protection through separation of reading unit and control unit
• Encrypted AES 128-bit data transmission between wAppLoxx Pro Wall Reader, Bridge Box and Control
• Wall Reader: Elegant design in white with high-quality scratch-resistant glass
• An external input on the Bridge Box allows switching a relay, e.g. for switches, push buttons, etc.
• Other jumper settings, e.g., control of the second relay in case of sabotage, mute circuit for wall reader, pulse, delay, etc.
• Industrial Bridge Box variant (standard ELS TK PC enclosure) for commercial use with IP66 protection class
• Visual and optional acoustic signaling

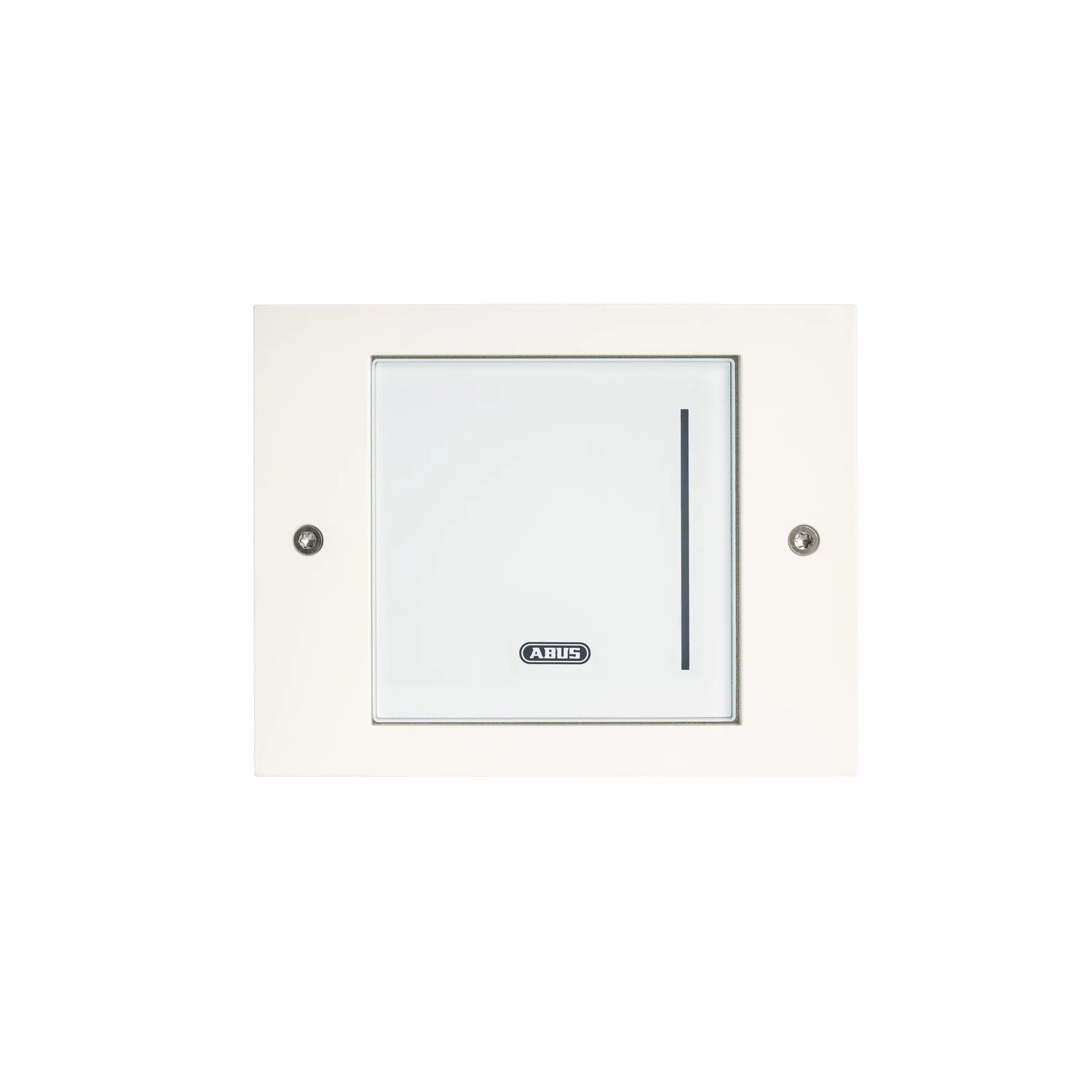

WLX Pro Wall Reader IP44

• Areas of application: Indoors and protected outdoor areas
• Reader type: Mifare Desfire EV1 & EV2, Mifare Classic
• Color: white or black
• Dimensions: 110 x 86 x 17 (with Gira frame) mm
• Connections: BUS
• Case material: Plastic with real glass
• Protection class IP: 44

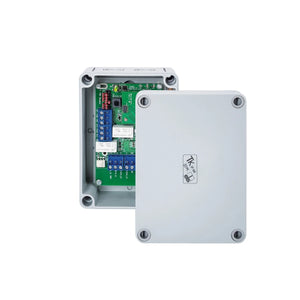

WLX Pro Bridge Box Industrial

• Maximum current draw: 12 V / <0.5 A
• Operating conditions: max. 95% relative humidity / 25°C
• Radio frequency: 868.3 MHz
• Wireless range: 30m indoors (100m open field nominal)
• External dimensions: 130 x 95 x 57 (H x W x D)
• Material: Polycarbonate, glass fiber reinforced
• Configuration: via wAppLoxx Pro Control
• Features: Control unit for wAppLoxxx Pro Wall Reader, BUS connection for Wall Reader unit, 1 external input (e.g., push button/switch), 2 relay outputs
• Power supply: 12 V DC
• Protection class IP: 66

• 1x wAppLoxx Pro Wall Reader IP44 white
• 1x wAppLoxx Pro Bridge Box Industrial Access
• 1x Gira TX44 frame white
