Product information
Description

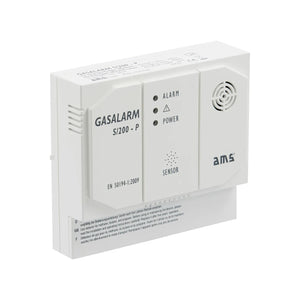

Gas alarm with built-in relay contact
The AMS S/200-P gas detector provides early warning of escaping natural gas (methane) or liquefied petroleum gas (propane/butane). The highly sensitive semiconductor sensor is factory-calibrated to detect gas concentrations well below the lower explosive limit.
The integrated relay contact allows, for example, connection to an alarm system, control of a valve, or ventilation system. An additional siren/flashing light for external alarm notification can be connected to the additional 12-volt alarm output.
Details
- Sensor: Semiconductor
- Design tested according to: EN 50194-1:2009
- Warning tone: Piezoelectric, 85 dB(A) at a distance of 3 m
- Indicator lights: green LED for readiness, red LED for alarm
- Dimensions (W x H x D): 140 x 125 x 42 mm
- Weight (230 Volt version): 420 g
- Color: white
- Relay contact: changeover contact: max. 5 A, 270 VAC, max. 5 A, 30 V DC
- Alarm output: 12 volts, max. 200 mA
- Alarm reset: automatic when the alarm threshold is undershot.
- Operating temperature: -10°C to +40°C
- Protection class: IP 20
- Sensitivity/Alarm Threshold: Methane (town/natural gas) 0.4%, Propane 0.24% or Butane 0.2%
- Connection cable: 1.2 m with Euro plug
Downloads
Description
Gas alarm with built-in relay contact
The AMS S/200-P gas detector provides early warning of escaping natural gas (methane) or liquefied petroleum gas (propane/butane). The highly sensitive semiconductor sensor is factory-calibrated to detect gas concentrations well below the lower explosive limit.
The integrated relay contact allows, for example, connection to an alarm system, control of a valve, or ventilation system. An additional siren/flashing light for external alarm notification can be connected to the additional 12-volt alarm output.
Details
- Sensor: Semiconductor
- Design tested according to: EN 50194-1:2009
- Warning tone: Piezoelectric, 85 dB(A) at a distance of 3 m
- Indicator lights: green LED for readiness, red LED for alarm
- Dimensions (W x H x D): 140 x 125 x 42 mm
- Weight (230 Volt version): 420 g
- Color: white
- Relay contact: changeover contact: max. 5 A, 270 VAC, max. 5 A, 30 V DC
- Alarm output: 12 volts, max. 200 mA
- Alarm reset: automatic when the alarm threshold is undershot.
- Operating temperature: -10°C to +40°C
- Protection class: IP 20
- Sensitivity/Alarm Threshold: Methane (town/natural gas) 0.4%, Propane 0.24% or Butane 0.2%
- Connection cable: 1.2 m with Euro plug
