Burglary protection begins in the garden

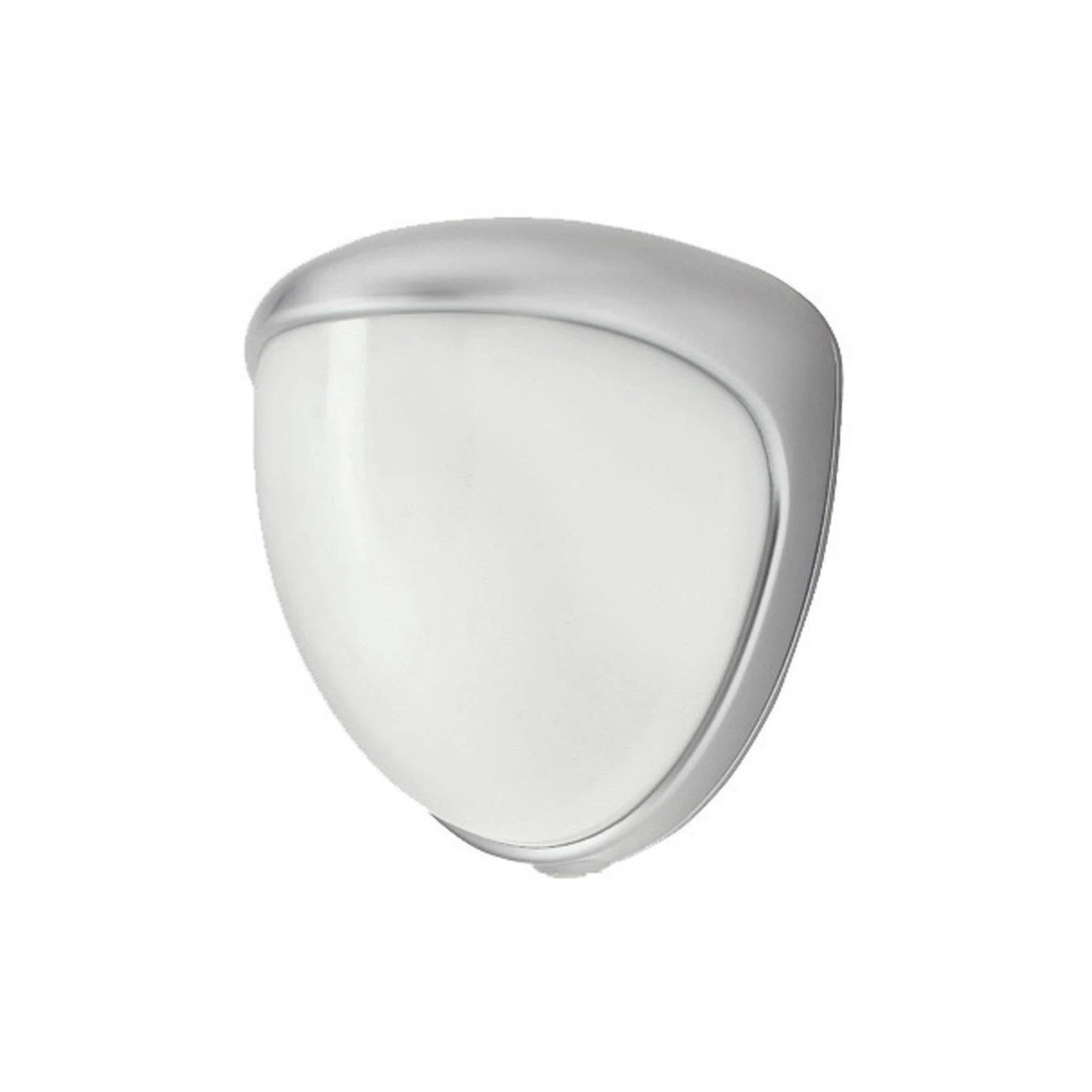

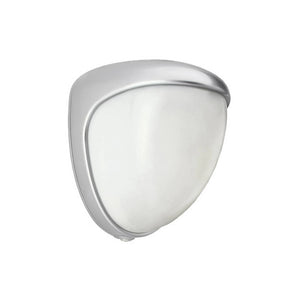

The ABUS AZBW20000 outdoor motion detector is a passive infrared motion detector with a dual PIR element and is designed for outdoor use. It reacts to heat movement and reports this to an alarm control panel or video surveillance system. The dual PIR element promises high reliability and reduces false alarms.
The integrated PIR elements can be swiveled 180° and tilted 90°, allowing the detector to be used in almost any location. The AZBW20000 has a viewing angle of 10°–70° and a detection range of up to 30 meters, depending on the mounting height.

• Connections: 3
• Detection method: Heat detection
• Detection range: 8-30 m
• Housing material: High-density polyethylene (HDPE)
• Dimensions (W x H x L): 157 x 120 x 115 mm
• Pulse selector switch: Yes
• Operating temperature: -20°C to +55°C
• Sabotage monitoring: Yes
• Switching outputs: 2
• Protection class IP: 55
• Sensor type: Independent dual PIR unit
• DC power supply: 9-15 V
• Status indicator: LED
• Current consumption: 8 mA
