Product information

Description

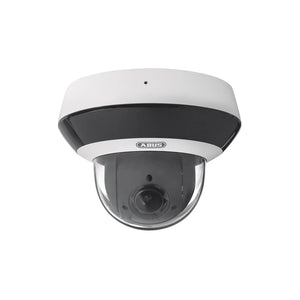

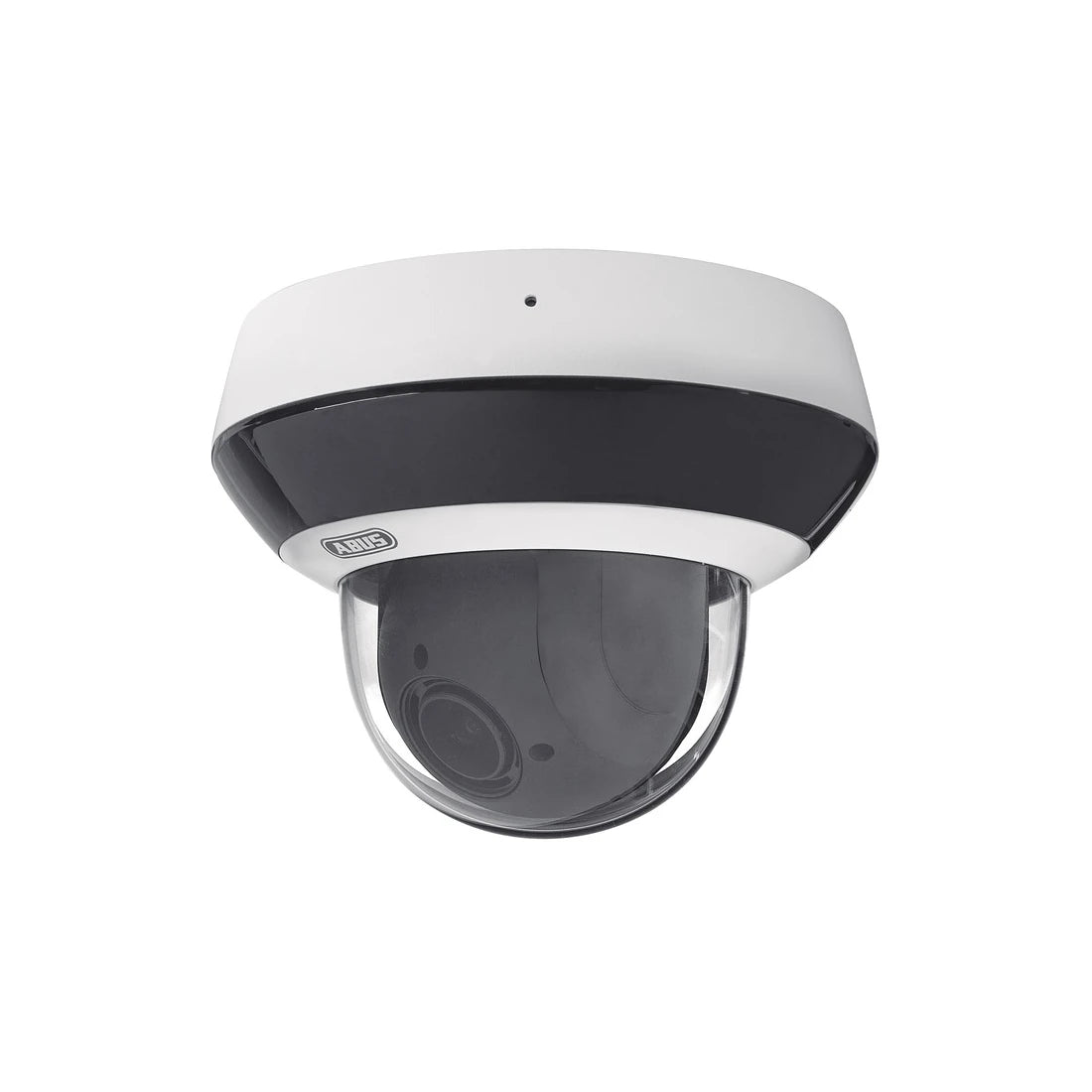

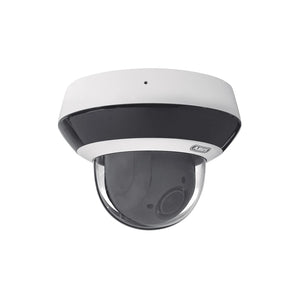

The ABUS IP Mini PTZ Dome delivers high-resolution video streams at 4 MPx with up to 25 fps. Despite its compact 13cm diameter, this IP camera offers all the features of a PTZ dome. Integrated IR LEDs enable day and night operation. The ABUS Link Station app allows convenient access to the dome camera anytime via smartphone or tablet. The weatherproof housing (IP66) and IK10 rating ensure reliable outdoor use. PTZ function: Pan, Tilt, Zoom The precise controls provide a 355° view, and the 4x... Read more

Details

Dimensions (H x W x D): 101.7 x 130.7 x 130.7 mm
Alerting: Email, NAS, FTP
Number of users: 32
Number of IR LEDs: 4
Number of presets: 300
Number of streams: 3
Audio: 2-Way Audio
Resolution: 4MPx
Resolution modes: Stream 1: 2,560 x 1,440 @ 25 fps, Stream 2: 704 x 576 @ 25 fps, Stream 3: 1,280 x 720 @ 25 fps
Operating temperature: -20 °C to +60 °C
Motion detection: Yes
Image sensor: 1/3" Progressive Scan CMOS
Image integration: 2x - 8x
Image optimization: WDR
Aperture at minimum illumination (color): F1.6 – F2.7
Focal length: 2.8-12 mm
Digital zoom: 16x
Dynamic range (WDR): 120 dB
Electronic shutter: 1 - 1/30000
Color: RAL9003
Backlight compensation: WDR
Housing material: Plastic
Horizontal viewing angle: 31.6-96.7°
ICR day/night function: Yes
IR LEDs: Yes
IR range: up to 20 m
Camera type: PTZ
Compatible with Secvest: Yes
Compatible with wAppLoxx (Pro): Yes
Compatible with ABUS Link Station: Yes
Power consumption: 12.2 W
Max. resolution @ frame rate: 2560 x 1440 @ 25 fps
Maximum speed: 100°/sec (pan), 100°/sec (tilt)
Maximum humidity: 90%
Microphone: Yes
Minimum illuminance (color): 0.005 lx
Minimum illumination (IR): 0 lx
Minimum illuminance (B/W): 0.001 lx
Network bandwidth for video: 32 kbit/s – 16 Mbit/s
Network connection: RJ45
Network connection LAN: RJ45
Network camera protocols: TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, ABUS Server, NTP, RTSP, DHCP, ONVIF, SNMP, QoS, 802.1X, PSIA
Lens: Motorized zoom
Optical zoom: 4x
PoE Standard: IEEE 802.3af
Private zones: 8
Protocols: Pelco D, Pelco P
Noise reduction: 3D-DNR
Relay output: 2
Protection rating: IP66
Protection class IK: 10
Pan/tilt range: 355°/0°-90°
Other features: Auto Backup Recording
DC power supply: 12 (+/-10%) V
Storage medium: Optional microSD card (max. 256 GB)
Day/night switching: Electromechanically swiveling IR cut filter (ICR), color/B&W
Supported browsers: IE10, IE11
Encryption: HTTPS
Video Content Analysis (VCA): Tripwire, Intrusion Detection
Video compression: Stream 1: H.264, H.265, Dynamic GOP, Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265, MJPEG
Video system: IP
White balance: ATW, manual Certifications: CE, C-Tick, RoHS, Reach

Lieferumfang

1x IP Mini PTZ 4 MPx (4x)
1x Quick Start Guide

Downloads

📄 IPCS84510_INST_DE.pdf

📄 Bedienungsanleitung
