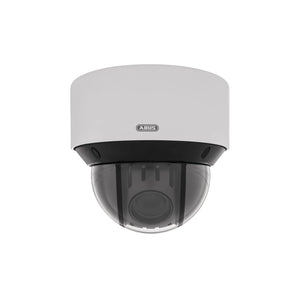

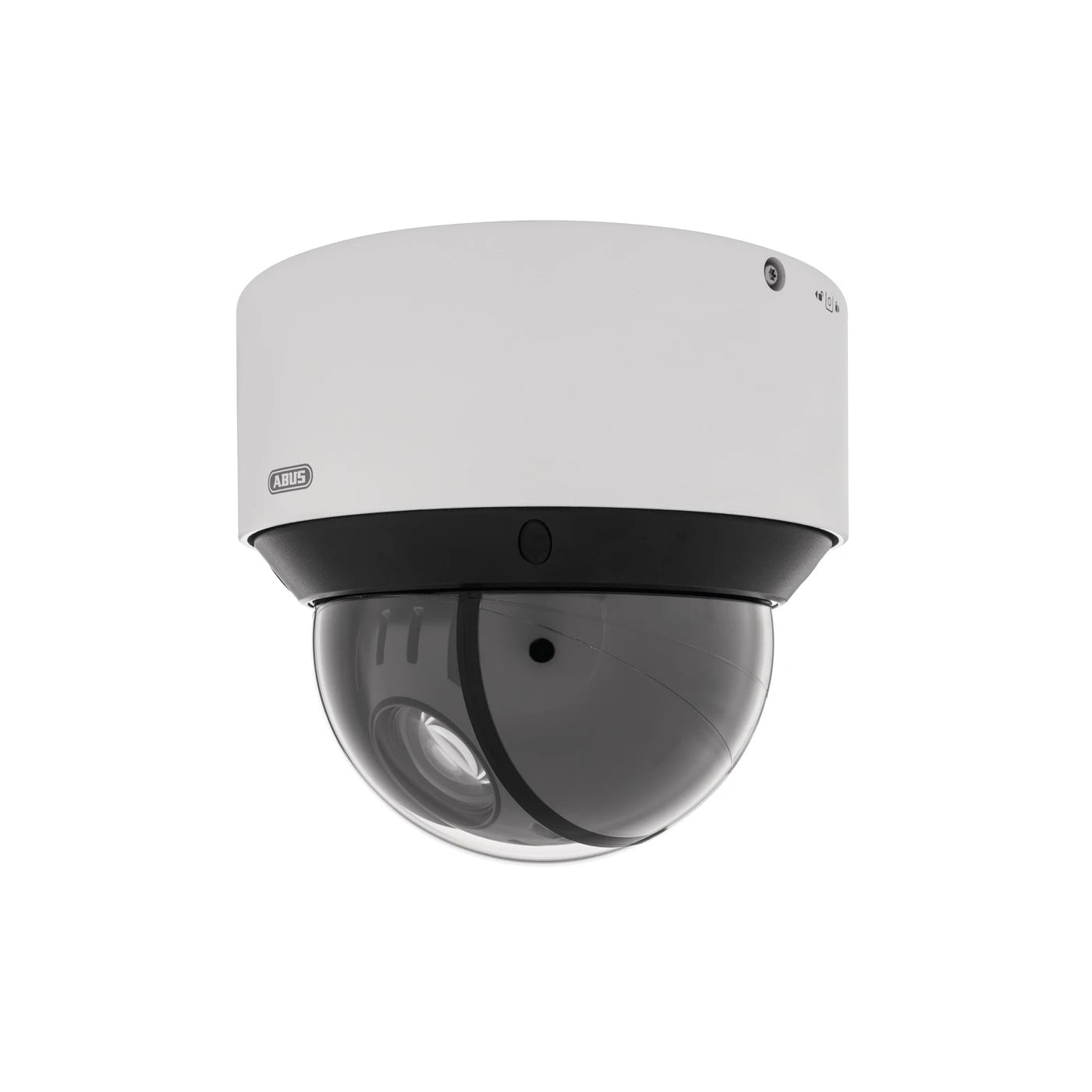

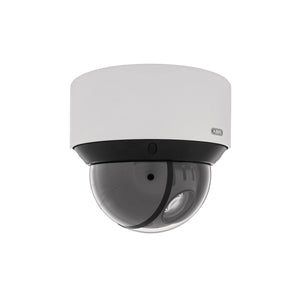

The IP PTZ Dome IPCS84532 delivers video streams in 4 MP resolution at up to 25 fps. Its weatherproof IP66 housing allows for outdoor use, while integrated IR LEDs enable day and night operation. The compact design makes it ideal for indoor use, for example, with a ceiling mounting frame. The camera can be conveniently accessed at any time via the Link Station app.

PTZ function: Pan, Tilt, Zoom
The precise control mechanism allows for fast and accurate 360° camera movement. The 25x optical autofocus motor zoom ensures sharp image composition even at great distances – people and objects are reliably detected. Thanks to Ultra Low Light technology and the high-performance WDR function, important details are captured in dark areas as well as in bright ones.

Automated guard patrol
Predefined preset positions allow for quick access to individual tours. This enables the camera to perform guard patrols independently.

Easy commissioning
The ABUS IP PTZ Dome is mounted on the ceiling (surface-mounted or flush-mounted) or on the wall.

For wall mounting, we recommend the installation box TVAC31245 or the ceiling mounting frame TVAC31275 for flush mounting on the ceiling, and for power supply via PoE+ (30W) the PoE injector TVAC25001.

Note: The camera does not come with a power adapter, as it can be powered via PoE.
The effective IR range depends on the location. Light-absorbing surfaces or the absence of IR-reflecting objects in the field of view reduce the IR range and/or result in a video image that is too dark. Furthermore, reflective objects in close proximity to the camera (e.g., gutters, walls) can cause disruptive reflections of IR light in the image.

Product benefits:

• 4 MPx Resolution: 2560 x 1440 @ 25 fps
• 25x autofocus zoom lens (4.8 – 120 mm)
• Ultra Low-Light Performance for outstanding results in low light conditions
• 120 dB WDR function for balancing image contrasts
• 8 programmable tours, each with up to 32 preset positions
• Weatherproof housing (IP66)
• IR LEDs (up to 50m range)
• Supports H.264, H.265, MJPEG (including dynamic GOP)
• Micro SD card slot for internal data storage
• 12V DC & PoE+ (802.3at)

• Dimensions (H x W): 161 x 169 mm
• Image sensor: 1/2.8" Progressive Scan CMOS
• Minimum illuminance (color): 0.005 lx
• Minimum illumination (IR): 0 lx
• Minimum illuminance (B/W): 0.001 lx
• Dynamic range (WDR): 120 dB
• Electronic shutter: 1/3 - 1/100000
• Backlight compensation: WDR
• Encryption: HTTPS, TLS 1.2
• White balance: AWB, manual
• Day/night switching: Electromechanically swiveling IR cut filter (ICR), color/B&W
• Storage medium: Optional microSD card (max. 256 GB)
• Protection class: IK 10
• Alarm input (NO/NC): 2
• Alerting: Email, NAS, FTP
• Connections: 1 x DC, 1 x RJ45, 2 x alarm input, 2 x alarm output, 1 x audio input, 1 x audio output
• Number of users: 32
• Number of tours: 8
• Audio: 2-way
• Resolution modes: Stream 1: 2,560 x 1,440 @ 25 fps, Stream 2: 704 x 576 @ 25 fps, Stream 3: 1,920 x 1,080 @ 25 fps
• Aperture at minimum illumination (color): F1.6 – F3.5
• Gross weight: 2.9 kg
• Digital zoom: 16x
• Features: Smart Tracking
• Housing material: Metal
• IR range: up to 50 m
• Camera type: PTZ
• Maximum humidity: 90%
• Power consumption: 18 W
• Net weight: 2.45 kg
• Network bandwidth for video: 32 kbit/s – 16 Mbit/s
• Optical zoom: 25x
• Resolution: 4 MP
• Protection class: IP 66
• Swivel/tilt range: 360° / -5° – 90°
• IR LEDs: Yes
• Compatible with Secvest: Yes
• Compatible with wAppLoxx: Yes
• Lens: motor zoom, autofocus
• Technology: IP
• Power supply: 12 V DC (+/-10%)
• Current consumption: 1,500 mA
• Video compression: Stream 1: H.264, H.265, Dynamic GOP, Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265, MJPEG
• Video system: IP
• Number of IR LEDs: 4
• Network connection: RJ45
• Intended use: Area monitoring (PTZ)
• Focal length: 4.8 – 120 mm
• Number of presets: 300
• Supported browsers: IE11, Mozilla Firefox, Google Chrome, MS Edge
• PoE Standard: IEEE 802.3at
• Network camera protocols: IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, TCP, UDP, DHCP, ABUS Server, P2P, QoS, 802.1X
• Motion detection: Yes
• Number of streams: 3
• Noise reduction: 3D-DNR
• Image integration: 2x - 8x
• Private zones: 24
• Maximum speed: 350°/sec (pan), 200°/sec (tilt)
• Operating temperature: -30 to +60 °C
• Network connection: LAN RJ45
• Max. resolution @ frame rate: 2560 x 1440 @ 25 fps
• Color: RAL9003
• Video Content Analysis (VCA): Tripwire, Intrusion Detection, Entry Area, Exit Area
• ICR day/night function: Yes
• Alarm output: 2
• Other features: Smart Tracking

• 1x IP Dome PTZ 4 MPx (25x)
• 1x Quick Start Guide
