Product information
Description
Access detection with IR light beam

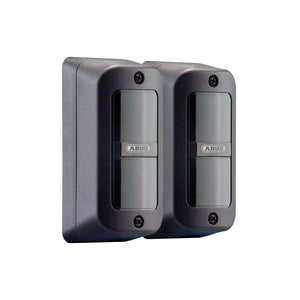

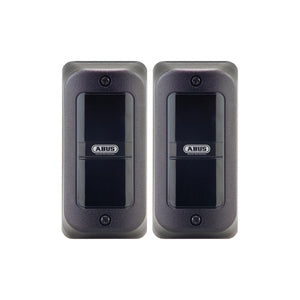

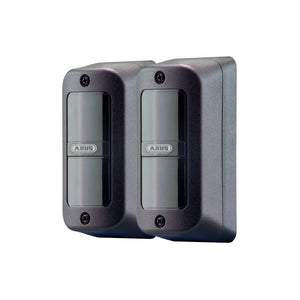

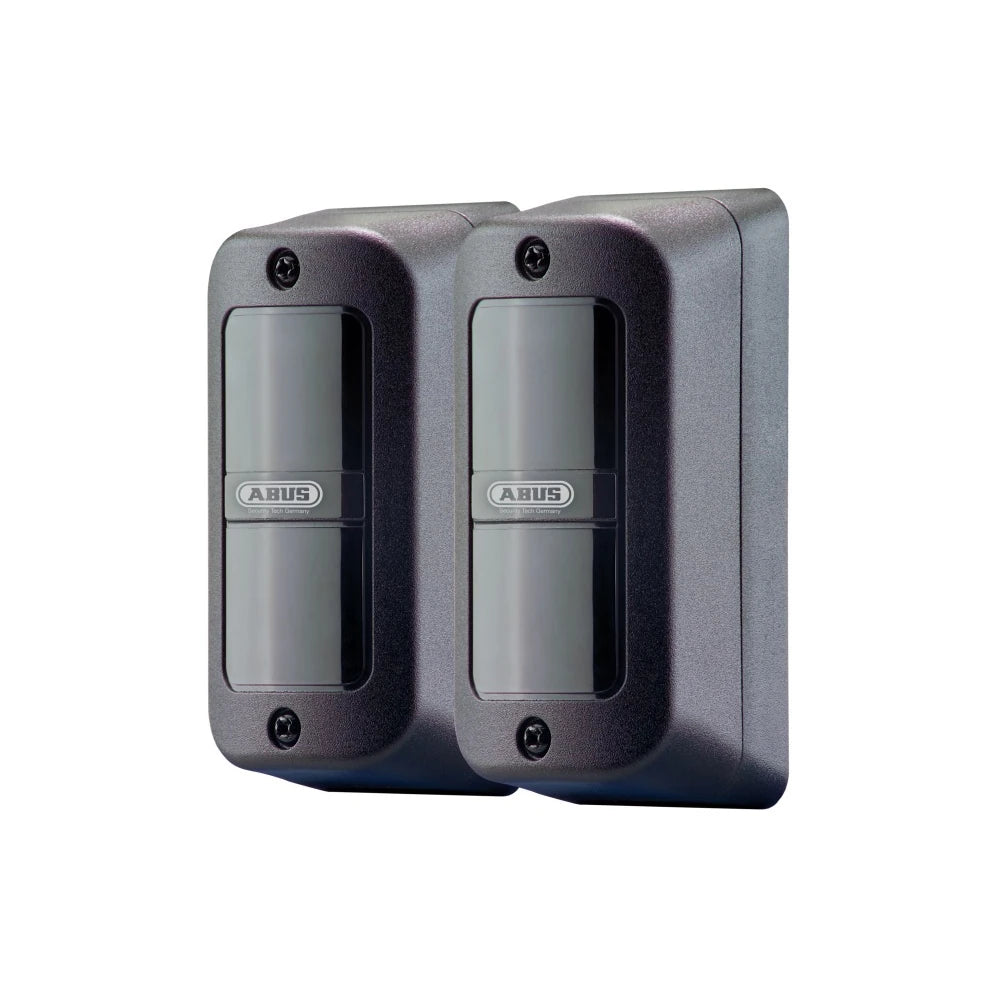

ABUS LS1020 infrared light barriers monitor a precisely defined line. Movements within the area in front of and beside this line are not detected. Therefore, passing people are not detected as long as they do not cross the invisible line.
Product features:
- Relay circuit and LED signal when passing through
- Suitable for trap protection, perimeter protection and open field protection
- Sabotage monitoring of transmitter and receiver via lid contact
- Suitable for indoor and outdoor use: IP55
Details
- Detection type: Active infrared light barrier (simple pulsed light barrier)
- Range (indoor/outdoor): 20 m
- Supply voltage: 12-24 VAC/DC
- Power consumption: Tx: 20 mA / Rx: 25 mA
- Response/interruption time: 100 ms
- Alarm output (Rx): Relay (NC/NO) 1 A/ 120 VAC
- Tamper output (Tx/Rx): NC contact 1 A / 120 VAC
- LED signaling (Tx/Rx): Green when voltage is applied / Red when triggered
- Maximum ambient light intensity: Light source < 10000 lux / Sunlight < 30000 lux
- Operating temperature: -20 °C to +60 °C
- Protection rating: IP66
- Dimensions (H x W x D): 95 x 46 x 34 mm
Scope of delivery
- 1x Infrared transmitter (Tx) with front cover
- 1x Infrared receiver (Rx) with front cover
- 4x housing screws
Downloads
Description
Access detection with IR light beam
ABUS LS1020 infrared light barriers monitor a precisely defined line. Movements within the area in front of and beside this line are not detected. Therefore, passing people are not detected as long as they do not cross the invisible line.
Product features:
- Relay circuit and LED signal when passing through
- Suitable for trap protection, perimeter protection and open field protection
- Sabotage monitoring of transmitter and receiver via lid contact
- Suitable for indoor and outdoor use: IP55
Details
- Detection type: Active infrared light barrier (simple pulsed light barrier)
- Range (indoor/outdoor): 20 m
- Supply voltage: 12-24 VAC/DC
- Power consumption: Tx: 20 mA / Rx: 25 mA
- Response/interruption time: 100 ms
- Alarm output (Rx): Relay (NC/NO) 1 A/ 120 VAC
- Tamper output (Tx/Rx): NC contact 1 A / 120 VAC
- LED signaling (Tx/Rx): Green when voltage is applied / Red when triggered
- Maximum ambient light intensity: Light source < 10000 lux / Sunlight < 30000 lux
- Operating temperature: -20 °C to +60 °C
- Protection rating: IP66
- Dimensions (H x W x D): 95 x 46 x 34 mm
Scope of delivery
- 1x Infrared transmitter (Tx) with front cover
- 1x Infrared receiver (Rx) with front cover
- 4x housing screws
