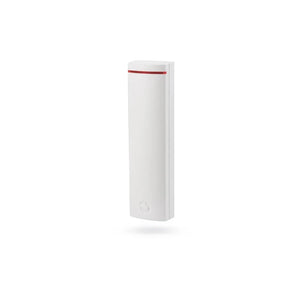

The Jablotron JA-111R 80 wireless module supports the upgrade of an existing OASIS 80 wireless alarm system to the new JABLOTRON 100+ system. The module can be combined within the system with JA-11xR modules, which communicate with JABLOTRON 100 components (e.g., keypads, sirens, camera PIR detectors, etc.).

Devices supported by the JA-111R 80 module:

• OASiS 80 radio pager JA-8x
• OASiS 80 Radio Remote Controls RC-8x

Unsupported devices:

• OASiS 80 wireless keypads JA-8xF
• OASiS 80 wireless camera PIR detector JA-84P
• OASiS 80 Wireless Repeater JA-80Z
• OASiS 80 Wireless Sirens JA-80x
• OASiS 80 wireless thermostats TP-xx
• OASiS 80 wireless output modules AC-8x and UC-82
• OASiS 80 wireless alarm panels JA-8xKR

• Compatible with: F-Link from version 1.4.0 onwards
• Power supply: 12 V (9...15 V) via the central unit's bus
• Power consumption in backup mode (standby): 25 mA
• Maximum radio frequency power: 25 mW
• Communication frequency: 868.5 MHz
• Dimensions (H x W x D): 160 x 43 x 23 mm
• Classification: Safety class 2, according to: EN 50131-1, EN 50131-3, EN 50131-5-3
• Environmental conditions: II. General indoor spaces according to EN 50131-1
• Ambient temperatures: -10 °C to +40 °C

• 1x JA-111R 80
