Product information
Description

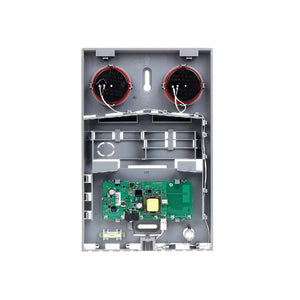

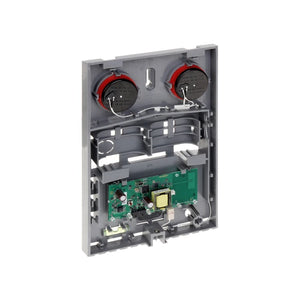

The Jablotron JA-163A-BASE-RB is the base module with electronics for the JA-163A wireless outdoor siren. Covers from the JA-1X1A-C-xx series are available in several colors and must be ordered separately. The siren is powered by one (or optionally two) BAT-100A lithium batteries.
Details
- Power supply: Lithium battery 3.6 V/13 Ah - type BAT-100A (up to 2 pieces, not included in the scope of delivery)
- Power consumption (nominal consumption/max. consumption): 0.3/1000 mA
- Low battery: ? 2.8 V
- Compatible with: JA-100K, JA-101K, JA-102K, JA-103K, JA-106K, JA-107K, JA-152KRY
- Radio frequency: 868.1 MHz, JABLOTRON protocol
- Radio range: approx. 300 m (open field)
- Internal antenna with the option to connect external antennas AN-868 antenna
- Piezoelectric siren: 100 dB/m
- Dimensions with cover (H x W x D): 300 x 200 x 70 mm
- Environmental conditions: EN 50131-1: Outdoor area IV
- Safety level: Grade 2, EN 50131-1, EN 50131-4
- Operating environment: -20 to +60 °C
- Protection rating: IP44
Scope of delivery
- 1x Base module JA-163A-BASE-RB (without siren cover and battery)
