Product information
Description

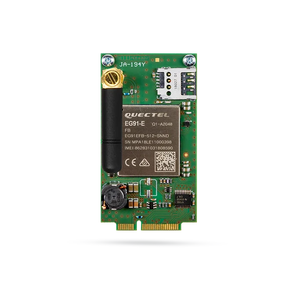

The JA-194Y LTE GSM module is designed for use with the JA-103K and JA-107K alarm control panels of the JABLOTRON 100+ series. A control panel equipped with the JA-194Y LTE module can communicate with a monitoring center via GSM networks and send alarms via SMS and voice messages. Additionally, it allows for configuration of the control panel using the
F-Link software.
Details
- Power supply: 12 V DC (from alarm control panel)
- Power consumption in standby mode: approx. 5 mA
- Maximum power consumption: 720 mA
- GSM communication band: 2G (GSM, EDGE) 900/1800 MHz, 3G 900/2100 MHz, 4G (LTE) 800/900/2100/2600 MHz
- Dimensions (H x W x D): 70 x 37 x 25 mm
- Weight: 23 g
-
Environmental conditions: II. General indoor spaces according to EN
50131-1
- Operating temperature range: -10 °C to +40 °C
Scope of delivery
- 1x JA-194Y LTE
