Product information
Description
The Jablotron GD-04K is a universal GSM communication and control unit with four inputs and two outputs. It controls various devices and/or generates status reports. Control is achieved via SMS command or phone call. The module is equipped with two current outputs with status or pulse response. For status monitoring, the GSM module has four inputs that respond to ground (connected to the GND terminal). The activation/deactivation of an input can be reported via SMS, dial-up, or a combination of both methods to up to 100 authorized phone numbers.
The GD-04K can be supplemented with a GD-04A backup battery , which ensures the module's emergency power supply. The module can be configured via USB cable or remotely using a PC with GD-Link 2.1.0 software (or a later version) installed. Configuration is also possible via a programming SMS.
Details
- Voltage: 10.5 ÷ 15 V DC
- Standby consumption: approx. 25 mA (+17 mA per relay)
- Maximum device power consumption during GSM communication: 200 mA
- GSM module frequency band: 850/900/1800/1900 MHz
- RF output power: 2 W for GSM 850/900, 1 W for GSM 1800/1900
- Triggering of inputs A, B, C, D: Connection to GND
- Load outputs X and Y: resistive load max. 2.5 A/250 V AC, Inductive (capacitive), incandescent lamp load max. 0.5 A/250 V AC
- Safety: EN 60950-1
- Operating environment: II. General indoor spaces (-10 °C to +40 °C)
- Dimensions (without antenna): 76 x 110 x 33 mm
- GSM antenna connector: SMA connector
Downloads
Description
The Jablotron GD-04K is a universal GSM communication and control unit with four inputs and two outputs. It controls various devices and/or generates status reports. Control is achieved via SMS command or phone call. The module is equipped with two current outputs with status or pulse response. For status monitoring, the GSM module has four inputs that respond to ground (connected to the GND terminal). The activation/deactivation of an input can be reported via SMS, dial-up, or a combination of both methods to up to 100 authorized phone numbers.
The GD-04K can be supplemented with a GD-04A backup battery , which ensures the module's emergency power supply. The module can be configured via USB cable or remotely using a PC with GD-Link 2.1.0 software (or a later version) installed. Configuration is also possible via a programming SMS.
Details
- Voltage: 10.5 ÷ 15 V DC
- Standby consumption: approx. 25 mA (+17 mA per relay)
- Maximum device power consumption during GSM communication: 200 mA
- GSM module frequency band: 850/900/1800/1900 MHz
- RF output power: 2 W for GSM 850/900, 1 W for GSM 1800/1900
- Triggering of inputs A, B, C, D: Connection to GND
- Load outputs X and Y: resistive load max. 2.5 A/250 V AC, Inductive (capacitive), incandescent lamp load max. 0.5 A/250 V AC
- Safety: EN 60950-1
- Operating environment: II. General indoor spaces (-10 °C to +40 °C)
- Dimensions (without antenna): 76 x 110 x 33 mm
- GSM antenna connector: SMA connector
Downloads
Manufacturer
by
Jablotron

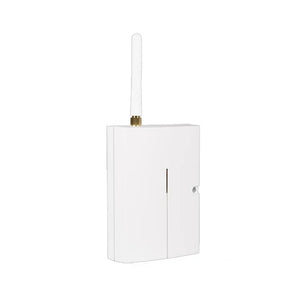

Jablotron GSM dialer GD-04K
- Regular price
- €280,00
- Sale price
- €280,00
- Regular price
-
€468,00
Couldn't load pickup availability
SKU: Product number: GD04K
Delivery time: 1-3 days
Free Shipping*
