Product information

Description

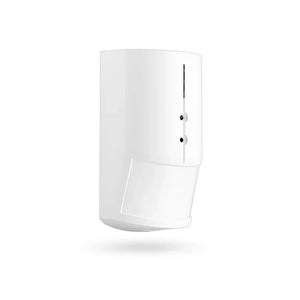

PIR detector with camera and flash
The JA-84P wireless motion detector, in conjunction with the Oasis wireless alarm system, is used for room monitoring. When triggered by human movement, the detector takes a series of photos and saves them to its integrated USB storage device. The captured images can then be transmitted wirelessly (e.g., to a mobile phone). A built-in flash ensures clear photos even in the dark.

Important: The JA-80Q interface is also required for data transmission to the OASiS alarm control panel. (Not required if a JA-82Y GSM voice dialer is already installed.)

Details

Detection range - motion detector (basic lens): 12 m / 120°
Recommended mounting height: 2.0 - 2.5 m
Power supply: 2x CR123A lithium batteries (not included)
Battery life: approx. 3 years
Frequency / Protocol: 868 MHz / Oasis Code
Wireless range: approx. 300 m outdoors
Dimensions (H x W x D): 110 x 60 x 55 mm
Case color: white

Downloads

📄 Installationsanleitung
