Product information
Description

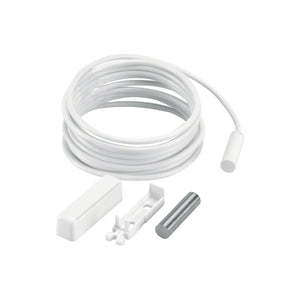

The ABUS MK7350W door/window contact sensor is used to secure doors and windows in conjunction with a wired alarm system. If the magnetic contact is opened by even a few millimeters, this is reported to the alarm control panel, triggering an alarm. The sensor consists of a magnetic contact (reed switch) and a magnet. These are mounted either parallel, end-to-end, or perpendicular to each other – with a maximum distance of 13 mm. In its resting state, the normally closed (NC) door/window contact sensor is in its closed circuit. The MK7350W is suitable for both flush and surface mounting.
Details
- Detection method: Magnetic field measurement
- Sensor type: Reed contact
- Connections: NC, Max. contact rating 100 V / 5 W / 0.05 A
- Housing material: ABS
- Color: white
- Installation: Built-in / Assembly
- Dimensions (W x H x D): 11 x 12 x 48 mm
- Cable length: 2 m, 2-core
Downloads
Description
The ABUS MK7350W door/window contact sensor is used to secure doors and windows in conjunction with a wired alarm system. If the magnetic contact is opened by even a few millimeters, this is reported to the alarm control panel, triggering an alarm. The sensor consists of a magnetic contact (reed switch) and a magnet. These are mounted either parallel, end-to-end, or perpendicular to each other – with a maximum distance of 13 mm. In its resting state, the normally closed (NC) door/window contact sensor is in its closed circuit. The MK7350W is suitable for both flush and surface mounting.
Details
- Detection method: Magnetic field measurement
- Sensor type: Reed contact
- Connections: NC, Max. contact rating 100 V / 5 W / 0.05 A
- Housing material: ABS
- Color: white
- Installation: Built-in / Assembly
- Dimensions (W x H x D): 11 x 12 x 48 mm
- Cable length: 2 m, 2-core
Downloads
Manufacturer
by
ABUS
Flush-mount/surface-mount door/window contact sensor, 2-wire | ABUS FU7350W
- Regular price
- €9,20
- Sale price
- €9,20
- Regular price
-
€11,09
Couldn't load pickup availability
SKU: Product number: FU7350W
Delivery time: 1-3 days
