Product information
Description

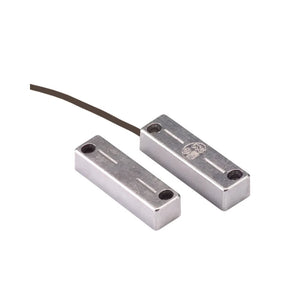

The ABUS MK4200 aluminum door/window contact is a robust magnetic contact for mounting on steel and metal doors. The contact consists of a magnetic reed switch and a magnet, which are mounted parallel to each other. The circuit of this normally closed (NC) door/window contact is closed in its resting state. If the distance between the reed switch and the magnet increases, an alarm is triggered. Thanks to its extremely robust aluminum housing, the contact is protected against damage from being driven over.
Details
- Dimensions (W x H x D): 19 x 80 x 18 mm
- Connections: NC, max. contact rating 200 V DC/1 A/10 W
- Detection method: Magnetic field measurement
- External field protection: No
- Sabotage monitoring: Yes
- Housing material: Aluminum
- Cable type: 4-core
- Cable length: 1.2 m
- Maximum operating temperature: 55 °C
- Mounting location: Surface mounting, switching distance on metal 14 mm, switching distance on non-metal 21 mm
- Protection rating: IP65
- Sensor type: Reed contact
- Certifications: VdS B
Downloads
Description
The ABUS MK4200 aluminum door/window contact is a robust magnetic contact for mounting on steel and metal doors. The contact consists of a magnetic reed switch and a magnet, which are mounted parallel to each other. The circuit of this normally closed (NC) door/window contact is closed in its resting state. If the distance between the reed switch and the magnet increases, an alarm is triggered. Thanks to its extremely robust aluminum housing, the contact is protected against damage from being driven over.
Details
- Dimensions (W x H x D): 19 x 80 x 18 mm
- Connections: NC, max. contact rating 200 V DC/1 A/10 W
- Detection method: Magnetic field measurement
- External field protection: No
- Sabotage monitoring: Yes
- Housing material: Aluminum
- Cable type: 4-core
- Cable length: 1.2 m
- Maximum operating temperature: 55 °C
- Mounting location: Surface mounting, switching distance on metal 14 mm, switching distance on non-metal 21 mm
- Protection rating: IP65
- Sensor type: Reed contact
- Certifications: VdS B
Downloads
Manufacturer
by
ABUS
Door opening sensor for steel doors VdS B | ABUS MK4200
- Regular price
- €16,40
- Sale price
- €16,40
- Regular price
-
€24,00
Couldn't load pickup availability
SKU: Product number: MK4200
Delivery time: 1-3 days
Free Shipping*
