Product information

Description

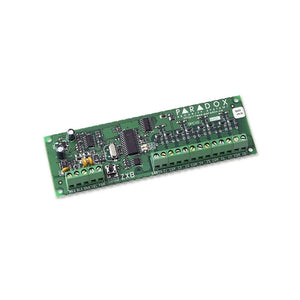

The Paradox ZX8 8-zone expansion module expands the alarm control panel by adding 8 wired zones and 1 programmable output. The ZX8 is compatible with the Paradox SPECTRA SP, Magellan MG5000/MG5050, and DIGIPLEX EVO control panels.

Details
  • Expansion: 8x wire zones + 1x PGM output (50 mA PGM)
  • Programmable EOL value
  • Power supply: 12 - 16 VDC
  • Power consumption: max. 28 mA
  • Outputs: PGM output, max. 50 mA
  • Operating temperature: -20°C to +50°C
  • Dimensions: 330 x 395 x 120 mm
  • Safety level: EN 50131 Grade 3 | EN 50130-5 Class II | EN 45011 System 5 | ANSI/SIA CP-01-2010 | CE
Description

The Paradox ZX8 8-zone expansion module expands the alarm control panel by adding 8 wired zones and 1 programmable output. The ZX8 is compatible with the Paradox SPECTRA SP, Magellan MG5000/MG5050, and DIGIPLEX EVO control panels.

Details
  • Expansion: 8x wire zones + 1x PGM output (50 mA PGM)
  • Programmable EOL value
  • Power supply: 12 - 16 VDC
  • Power consumption: max. 28 mA
  • Outputs: PGM output, max. 50 mA
  • Operating temperature: -20°C to +50°C
  • Dimensions: 330 x 395 x 120 mm
  • Safety level: EN 50131 Grade 3 | EN 50130-5 Class II | EN 45011 System 5 | ANSI/SIA CP-01-2010 | CE
Manufacturer by Paradox

Paradox ZX8 Expansion Module (8 zones)

Regular price
€69,90
Sale price
€69,90
Regular price
  • Erweiterungsmodule
  • Relais
  • Zubehör

SKU: Product number: ZX8

Delivery time: 4-6 days
