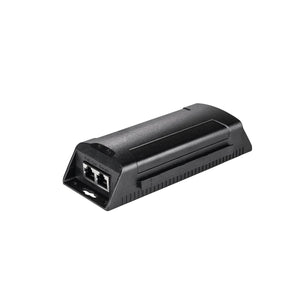

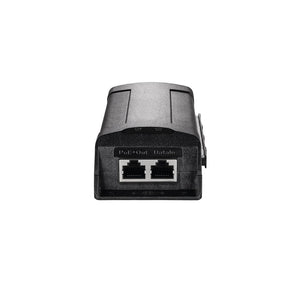

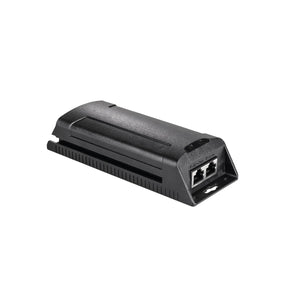

With the ABUS Power-over-Ethernet (PoE) Injector TVAC25001, you minimize cabling effort when installing IP cameras. Power and data for the IP cameras are injected directly into the Ethernet cable. Power is then supplied solely via the network cable – PoE. This eliminates the need to lay a separate power cable, and you are no longer dependent on a locally available power supply when choosing the location of your network camera.

Product benefits:

• Power and data transmission via network cable to all PoE-enabled network cameras
• Transmission range up to 100 m
• Complies with the IEEE 802.3af standard.

• Dimensions (L x W x H): 160 x 64 x 60 mm
• Connection type: RJ-45
• Output power: 30 W
• Operating temperature: -10 °C to +55 °C
• Data output: 10/100/1000 MB/s
• Input voltage AC: 100 – 240 V
• Maximum humidity: 90%
• PoE: 802.3af

1x PoE Injector 30W
1x power cable
1x clamp for power cable
