Product information

Description

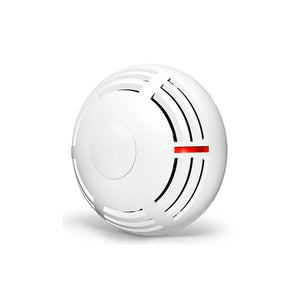

The Satel DRP-100 The DRP-100 detects smoke photoelectrically according to EN54-7. Its unique chamber design guarantees high sensitivity and omnidirectional detection. The precision stainless steel honeycomb filter protects the chamber from dirt and small insects. The DRP-100 is universally compatible with 12V alarm control panels. Product features: Unique swirl chamber for rapid smoke detection Certified according to the standards: EN 54-7 - Smoke detection Line type selection (NO...   Read more
Details
  • Power supply: 12 V DC ±15%
  • Quiescent current consumption: 0.03 mA
  • Maximum current draw: 23 mA
  • Alarm output (relay, ohmic load): 40 mA / 16 V DC
  • Environmental class according to EN50130-5 II
  • Operating temperature range: -25°C to +50°C
  • Mounting in the DB-100 detector base (not included in the scope of delivery)
  • Dimensions: ø108 x 42 mm
  • Weight: 94 g
  • Lieferumfang
    • 1x Satel DRP-100
    Downloads
    Description
    The Satel DRP-100 The DRP-100 detects smoke photoelectrically according to EN54-7. Its unique chamber design guarantees high sensitivity and omnidirectional detection. The precision stainless steel honeycomb filter protects the chamber from dirt and small insects. The DRP-100 is universally compatible with 12V alarm control panels. Product features: Unique swirl chamber for rapid smoke detection Certified according to the standards: EN 54-7 - Smoke detection Line type selection (NO...   Read more
    Details
  • Power supply: 12 V DC ±15%
  • Quiescent current consumption: 0.03 mA
  • Maximum current draw: 23 mA
  • Alarm output (relay, ohmic load): 40 mA / 16 V DC
  • Environmental class according to EN50130-5 II
  • Operating temperature range: -25°C to +50°C
  • Mounting in the DB-100 detector base (not included in the scope of delivery)
  • Dimensions: ø108 x 42 mm
  • Weight: 94 g
  • Lieferumfang
    • 1x Satel DRP-100
    Downloads
    Manufacturer by Satel

    Satel 12V Smoke Detector DRP-100 (optical)

    Regular price
    €32,90
    Sale price
    €32,90
    Regular price
    €48,84

    SKU: Product number: DRP-100

    Delivery time: 1-3 days
