Product information

Description

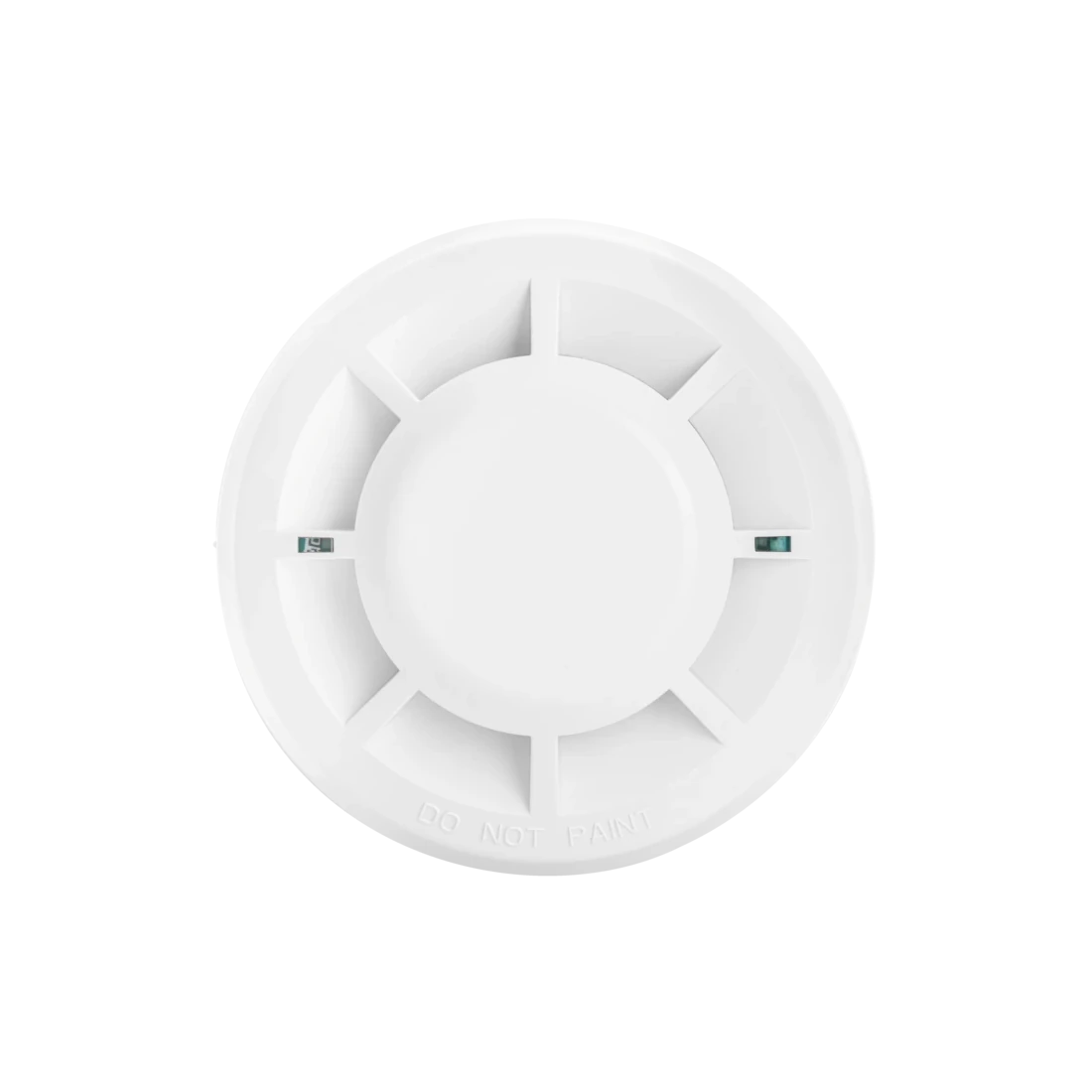

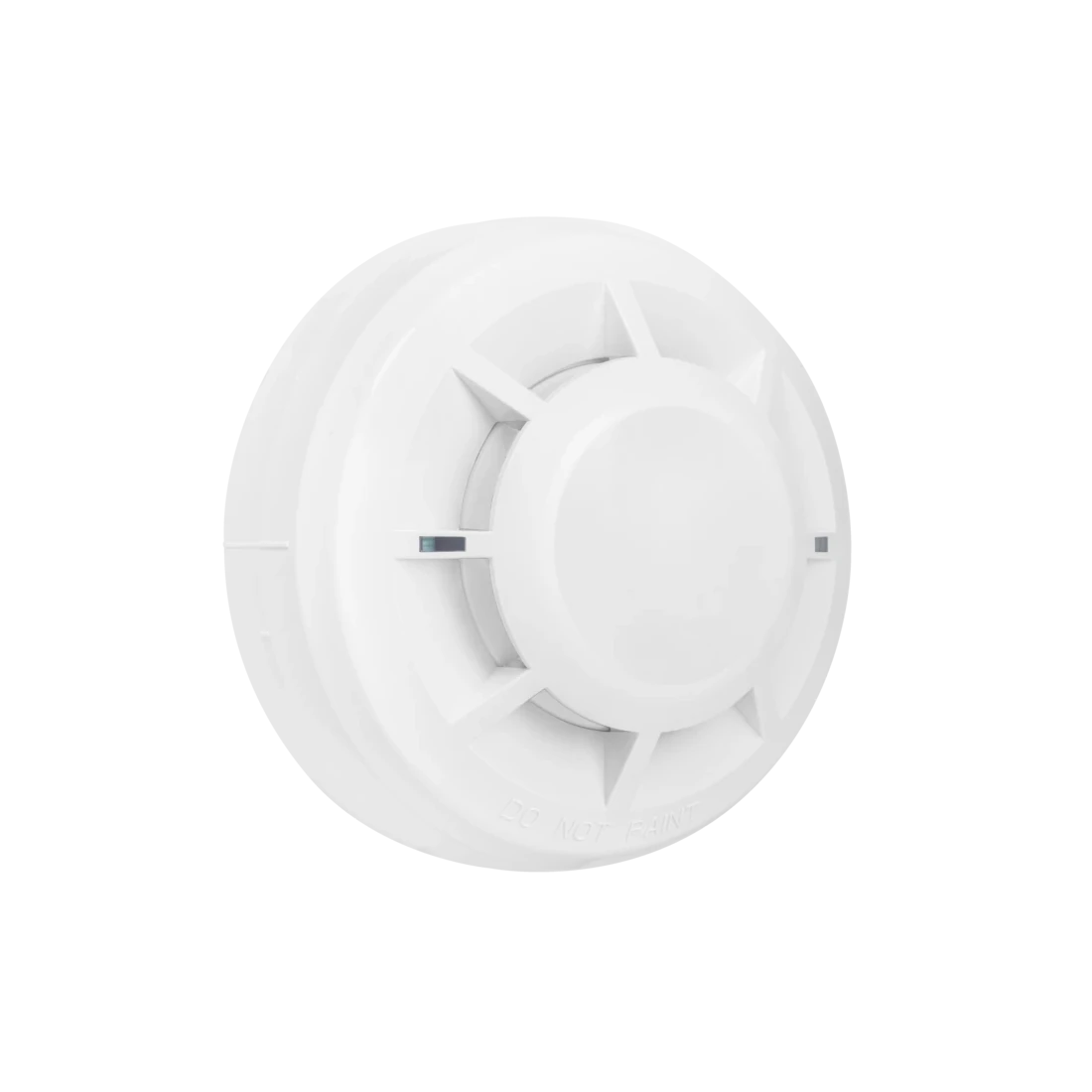

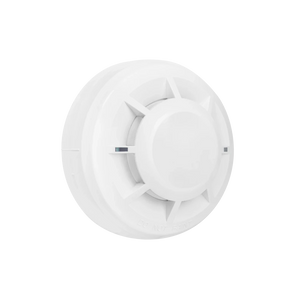

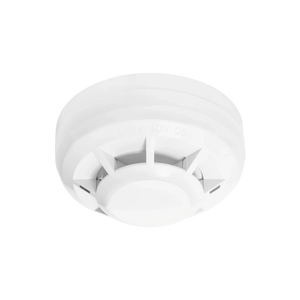

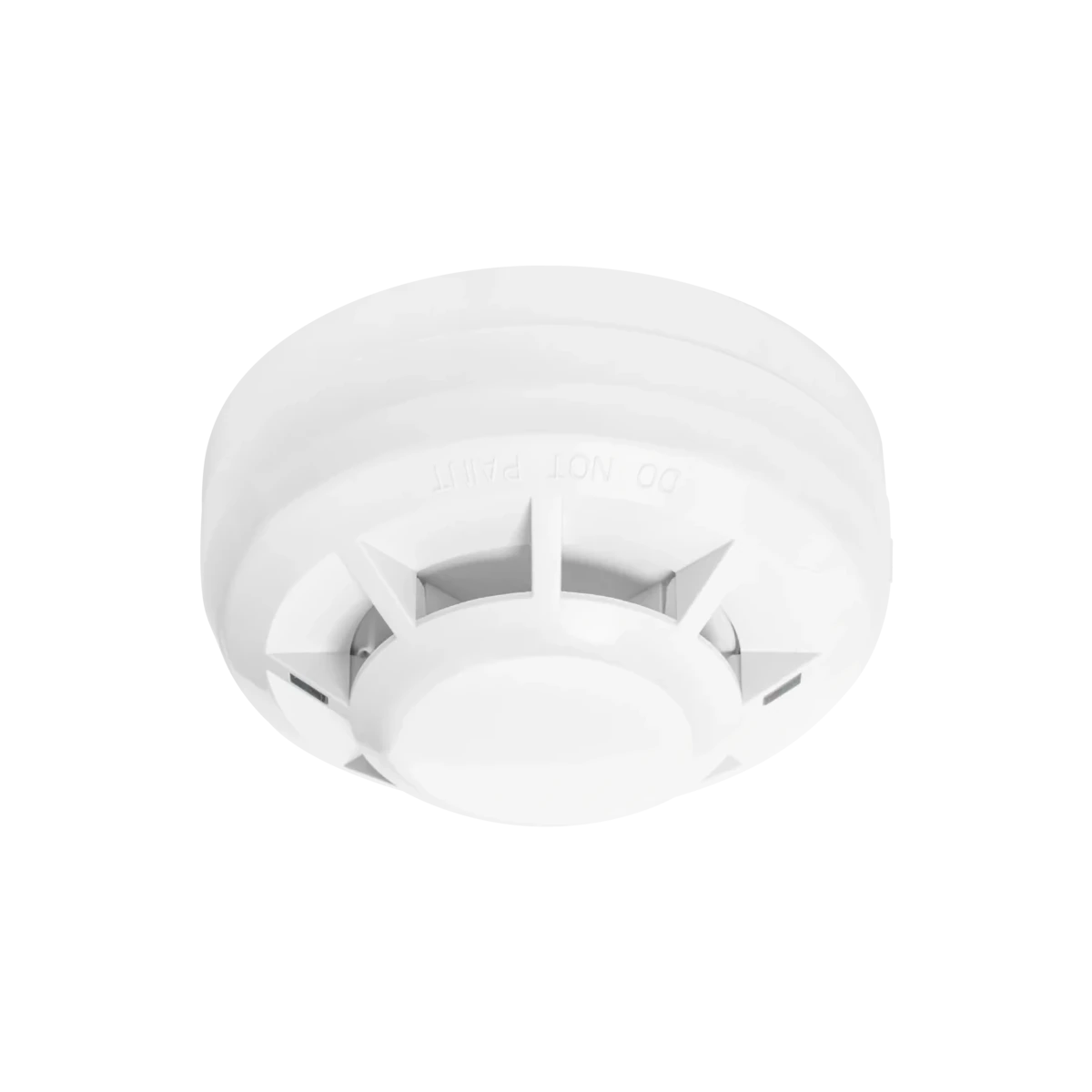

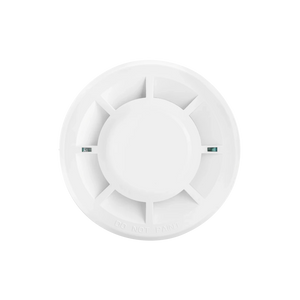

Temperature-dependent fire detection The ABUS RM1100 thermal differential detector detects incipient fires. It is used to prevent false alarms in smoking rooms, kitchens, garages, and similar areas. The fire detector reacts to a maximum temperature above 60°C and to a rapid temperature increase of more than 3°C per minute. If these values ​​are exceeded, the alarm system is notified and an alarm is triggered.   Read more
Details
  • Abmessungen (H x Dm): 45 x 100 mm
  • Zertifizierung: EN54-5
  • Facettenfarbe: weiß
  • Kompatibel zu: Secoris, Secvest, Terxon, uvm.
  • Anschlüsse Schraubterminal: NO oder NC, 2 A @ 30 V DC
  • Spannungsversorgung: 10-28 VDC
  • Gehäusematerial: ABS
  • Einsatzbereiche: Innenraum
  • Max. Betriebstemperatur: -10°C bis +50°C
  • Max. Luftfeuchtigkeit: 95 %
  • Montageort: Decke
  • Sensortyp Thermoelement: Thermodifferenzial (3° C/Minute), Maximaltemperatur (60° C)
  • VdS Klasse: ohne
  • VdS anerkannt: Nein
  • Spannungsüberwachung: Nein
  • WEEE-Gruppe: 09
  • Artikelgewicht: 150g
  • Stromaufnahme: 48 mA
Description
Temperature-dependent fire detection The ABUS RM1100 thermal differential detector detects incipient fires. It is used to prevent false alarms in smoking rooms, kitchens, garages, and similar areas. The fire detector reacts to a maximum temperature above 60°C and to a rapid temperature increase of more than 3°C per minute. If these values ​​are exceeded, the alarm system is notified and an alarm is triggered.   Read more
Details
  • Abmessungen (H x Dm): 45 x 100 mm
  • Zertifizierung: EN54-5
  • Facettenfarbe: weiß
  • Kompatibel zu: Secoris, Secvest, Terxon, uvm.
  • Anschlüsse Schraubterminal: NO oder NC, 2 A @ 30 V DC
  • Spannungsversorgung: 10-28 VDC
  • Gehäusematerial: ABS
  • Einsatzbereiche: Innenraum
  • Max. Betriebstemperatur: -10°C bis +50°C
  • Max. Luftfeuchtigkeit: 95 %
  • Montageort: Decke
  • Sensortyp Thermoelement: Thermodifferenzial (3° C/Minute), Maximaltemperatur (60° C)
  • VdS Klasse: ohne
  • VdS anerkannt: Nein
  • Spannungsüberwachung: Nein
  • WEEE-Gruppe: 09
  • Artikelgewicht: 150g
  • Stromaufnahme: 48 mA
Manufacturer by ABUS

Thermal differential detector 12V | ABUS RM1100

Regular price
€27,40
Sale price
€27,40
Regular price
€32,40
Series: ABUS Terxon SX
Series: ABUS Terxon SX

SKU: Product number: AZRM11000

Delivery time: 1-3 days
100% original products with manufacturer's warranty
Information for corporate/business customers
Learn more here

Free shipping on orders over €99*

For more information
