Product information

Description

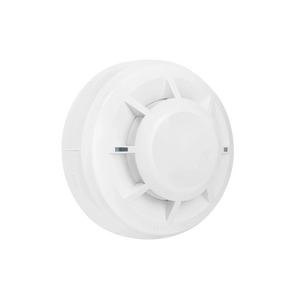

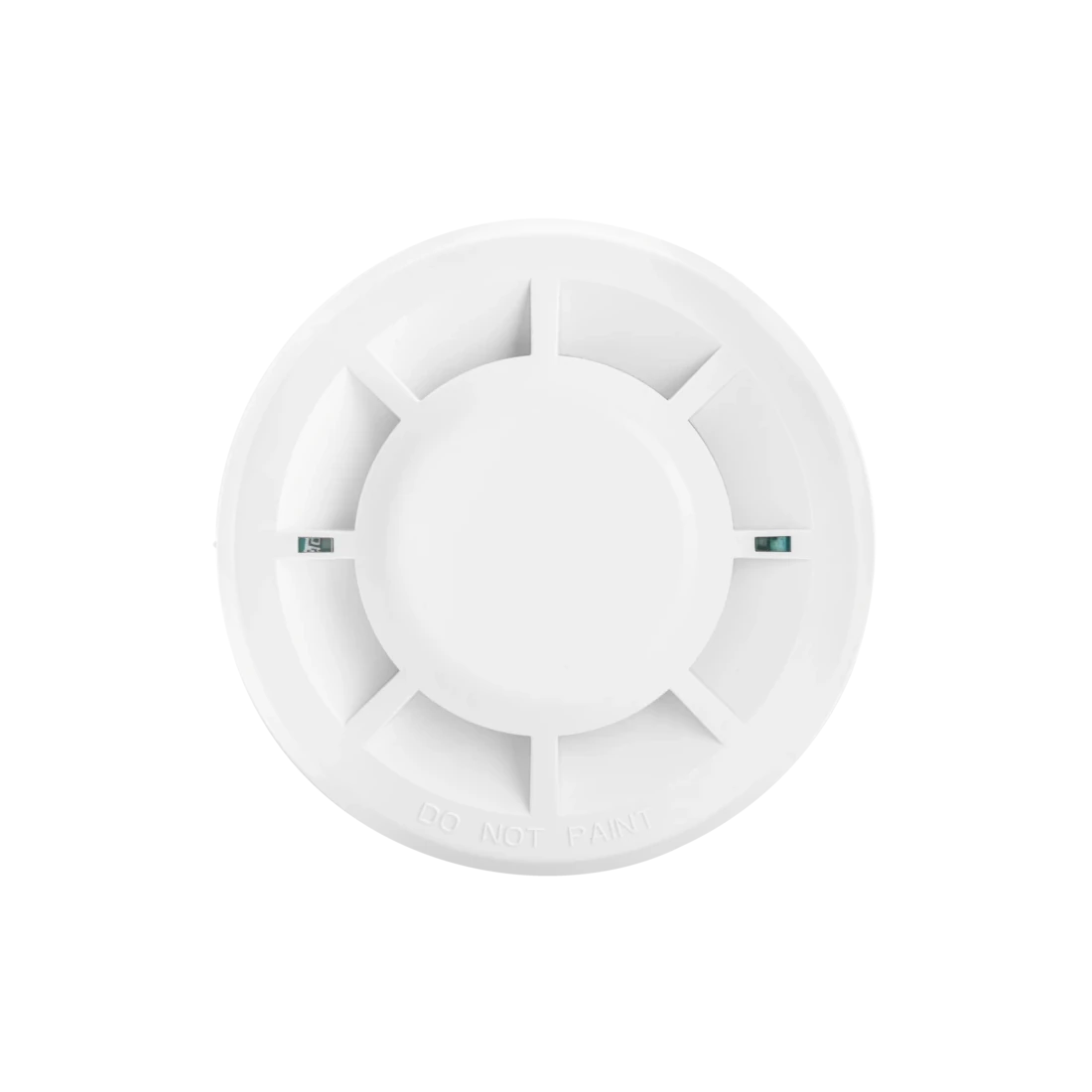

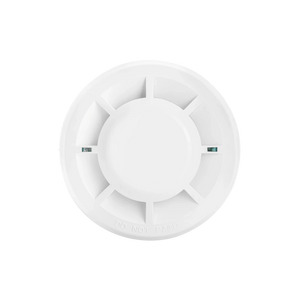

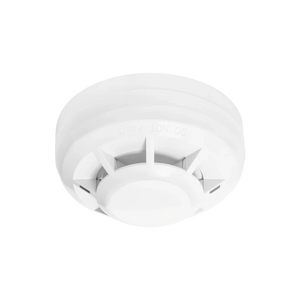

Temperature-dependent fire detection The ABUS RM1100 thermal differential detector detects incipient fires. It is used to prevent false alarms in smoking rooms, kitchens, garages, and similar areas. The fire detector reacts to a maximum temperature above 60°C and to a rapid temperature increase of more than 3°C per minute. If these values ​​are exceeded, the alarm system is notified and an alarm is triggered.   Read more
Details
  • Dimensions (H x Dia): 45 x 100 mm
  • Certification: EN54-5
  • Facet color: white
  • Compatible with: Secoris, Secvest, Terxon, and many more.
  • Screw terminal connections: NO or NC, 2 A @ 30 V DC
  • Power supply: 10-28 VDC
  • Housing material: ABS
  • Areas of application: Interior
  • Max. operating temperature: -10°C to +50°C
  • Max. humidity: 95 %
  • Installation location: Ceiling
  • Thermocouple sensor type: Rate-of-rise (3° C/minute), maximum temperature (60° C)
  • VdS class: none
  • VdS approved: No
  • Voltage monitoring: No
  • WEEE group: 09
  • Item weight: 150g
  • Current consumption: 48 mA
Description
Temperature-dependent fire detection The ABUS RM1100 thermal differential detector detects incipient fires. It is used to prevent false alarms in smoking rooms, kitchens, garages, and similar areas. The fire detector reacts to a maximum temperature above 60°C and to a rapid temperature increase of more than 3°C per minute. If these values ​​are exceeded, the alarm system is notified and an alarm is triggered.   Read more
Details
  • Dimensions (H x Dia): 45 x 100 mm
  • Certification: EN54-5
  • Facet color: white
  • Compatible with: Secoris, Secvest, Terxon, and many more.
  • Screw terminal connections: NO or NC, 2 A @ 30 V DC
  • Power supply: 10-28 VDC
  • Housing material: ABS
  • Areas of application: Interior
  • Max. operating temperature: -10°C to +50°C
  • Max. humidity: 95 %
  • Installation location: Ceiling
  • Thermocouple sensor type: Rate-of-rise (3° C/minute), maximum temperature (60° C)
  • VdS class: none
  • VdS approved: No
  • Voltage monitoring: No
  • WEEE group: 09
  • Item weight: 150g
  • Current consumption: 48 mA
Manufacturer by ABUS

Thermal differential detector 12V | ABUS RM1100

Regular price
€27,40
Sale price
€27,40
Regular price
€32,40
Series: ABUS Terxon SX
Series: ABUS Terxon SX

SKU: Product number: AZRM11000

Delivery time: 1-3 days
100% original products with manufacturer's warranty
