Product information

Description

ABUS WiFi battery camera PPIC91520 for expanding the ABUS battery camera Pro with base station PPIC91000. Up to 4 cameras can be operated from one base.

Easy and via app
The first live image appears on the free App2Cam Plus within minutes, without any camera registration. Thanks to its innovative mounting system, the battery-powered camera is quick to install and securely attached to the mount.

Long-life battery
Standby mode and intelligent motion detection enable a runtime of up to 6 months. A notification is sent via the app when the battery is running low. It is fully recharged after a few hours.

For outdoor use and in the dark
With Full HD resolution, white LED lighting, and a low-light function, you get clear and detailed color images day and night. The horizontal design, ideal for ceiling mounting, and the 120° viewing angle ensure an optimal overview. Thanks to its certified IP65 rating, it's weatherproof against rain, snow, and sunlight.

Securely transfer and store locally
The security cameras transmit the data directly to the base station, encrypted and without going through the internet or a cloud. The base station, protected within the building, stores the data immediately and free of charge on the local microSD card.

Product benefits:

Battery-powered wireless surveillance camera, Person detection, push notification upon motion alarm, two-way communication function, Color images even at night
Free access via mobile phone and tablet app App2Cam Plus (no subscription required)
Required for operation: ABUS Battery Camera Pro with Base Station (PPIC91000)

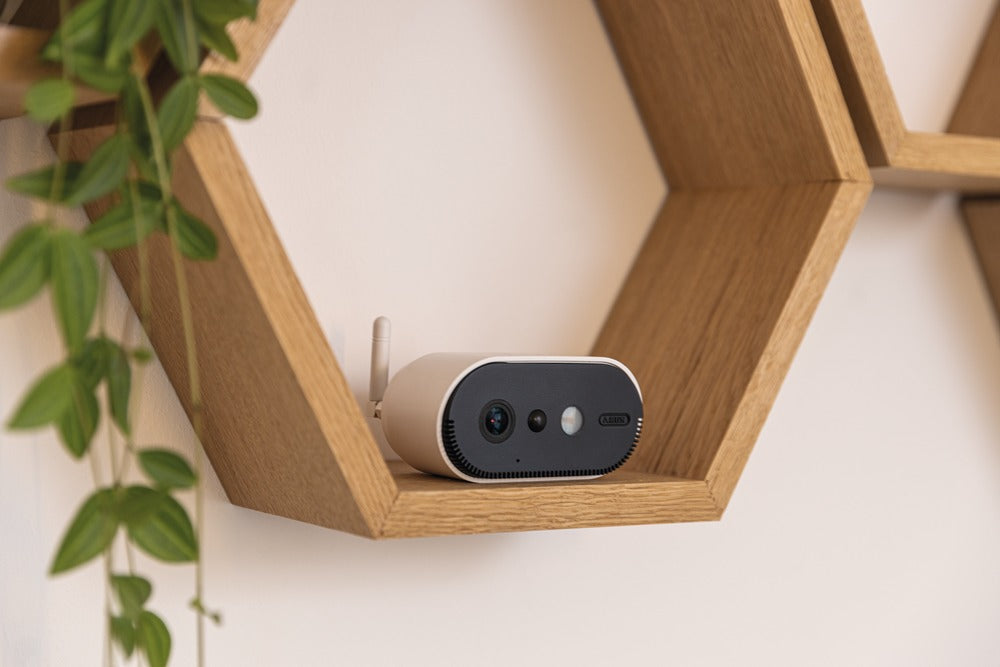

Flexible wireless outdoor camera Indoor use; weatherproof (IP65 protection rating); 120-degree viewing angle; as needed Place it on a shelf indoors, or use the practical ball-head mount outdoors.
Ready for immediate use thanks to Easy setup (with app wizard in a few minutes); via app Permanent free access to live stream, storage and all functions and personal settings (white light LED etc.)
Fully automatic Person recognition and push notification via app (ignored) Vehicles/animals; automatically starting recording (ignoring wind-swaying objects). branches etc.)
Private zones completely Hide/redact (e.g., public property); data protection compliant Record (audio off; depending on the on-site operation, permanently save video data) (or automatically delete after 3, 7 or 30 days)
Intelligent battery management; Battery life is therefore up to 6 months (with approx. 4 recordings/accesses per day; with more frequent/longer use, heat/frost or greater distance to (Base station reduces runtime)
3-megapixel resolution; clear and detailed night vision in color

Details

Color temperature: 3000 K
Audio compression: g711
Audio Bitrate: 64kbps
Color: black / white
Battery: Yes
Technology: IP
Compatible with Secvest: No
Compatible with wAppLoxx: No
Compatible with Smartvest: Yes
Vertical viewing angle: 75°
Minimum humidity: 10%
Brightness of white LED light: 28 lm
Dimensions: 103 x 51 x 54 mm
Battery life: up to 13 months
Battery type: 2 x 18650 Li-ion battery
Alert: Push notification
Number of users: 3
Audio output: Speakers
Audio input: Microphone
Resolution modes: VGA / 720p / 1080p
Recording modes: PIR motion detection / Manual
Operating temperature: -20 °C to +50 °C
Image sensor: Sony IMX307
Focal length: 2.9 mm
Gross weight: 0.277 kg
DSP: Ingenic T30
Frequency range: 2.4 GHz
Housing material: Plastic
Simultaneous network access: 3
Horizontal viewing angle: 115°
Max. resolution @ frame rate: Full HD (1080p) @ 15fps
Maximum humidity: 90%
Microphone: Yes
Minimum illumination (color): 1 lx
Network protocols: 802.11 b/g/n
Network connection WLAN: Wi-Fi (2.4GHz)
Lens mount: 5G
PIR viewing angle: 112°
PIR range: 8 m
Protection class IP: 65
Software: App: ABUS App2Cam Plus (Android/iOS)
DC power supply: 5 V
Storage medium: microSD card (up to 128GB)
Connector type: Micro-USB
Day/night switching: Auto
Encryption: WPA2
Video compression: H.264
White balance: AWB
White light LED: 1

Scope of delivery

Battery Camera Pro
Antenna for battery-powered camera Pro
Wall mount for camera
Drilling template for camera
Mounting hardware for camera
USB-A to USB-C cable
Reset tool

Downloads

📄 Bedienungsanleitung
