Product information

Description

GSM / GPRS / IP - The AJAX Hub Kit 2 - the start into the world of security

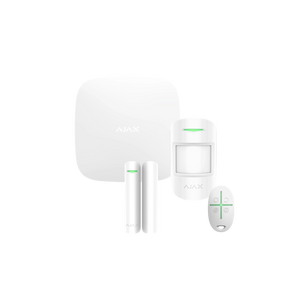

The AJAX Starter Kit is a certified burglar alarm system according to EU standard EN 50131 Grade 2 and thus meets the security standard recommended by insurance companies and police for apartments, houses, or offices. In the event of an alarm (e.g., burglary, fire, water ingress), the user or security service is alerted via the app. Depending on requirements, the AJAX Starter Kit can be expanded with a variety of additional wireless detectors and other components. The AJAX Starter Kit includes the 2G wireless alarm control panel (Hub 2), a wireless PIR detector, a wireless opening detector, and a wireless remote control.

Details

AJAX Alarm Panel - Hub 2 (2G)

Dimensions (L x W x D): 163 x 163 x 36 mm
Operating temperature: +5 °C to +40 °C
Color: white or black
Radio signal power: 25 mW
Radio protocol: Jeweler (868 MHz)
Radio range: up to 2,000 m in open field
Weight: 350 g
Communication: Ethernet & 2x GPRS/GSM (2G) (850/900/1800/1900 MHz)
Max. users: 99
Max. number of wireless components: 150
Emergency power supply: Li-Ion 2 Ah (up to 10 hours)
Protection through sabotage contact: Yes
SIM card support: Micro-SIM 2G/3G (not included)
Smartphone App: iOS 7.1 or higher, Android 4.1 or higher
Supply voltage: 110-240 VAC

AJAX wireless motion detector "MotionProtect"

Dimensions (H x W x D): 110 x 65 x 50 mm
Application: Indoor
Battery life: up to 7 years
Operating voltage: 3 V
Operating temperature: +5 °C to +40 °C
Detection range: up to 12 m
Detection angle: 88.5° horizontal / 80° vertical
Sensitivity: three adjustable levels (low, medium, high)
Recommended mounting height: 2.4 m
Radio signal power: 20 mW
Radio protocol: Jeweler (868MHz)
Communication: wireless
Maximum radio range: up to 2000 m in open terrain
Maximum humidity: 80%
Sabotage protection: yes
Power supply: Lithium battery (CR123A)
Animal immunity: up to approx. 20 kg weight and up to 50 cm shoulder height

AJAX radio magnetic contact "DoorProtect"

Dimensions (diameter x height): 20 x 90 mm
Connection for external sensors: yes (NC)
Application: Indoor
Battery life: up to 5 years
Operating voltage: 3 V
Operating temperature: 0 °C to +50 °C
Color: white
Radio signal power: 20 mW
Radio protocol: Jeweler (868MHz)
Communication: wireless
Maximum radio range: up to 1200 m in open terrain
Maximum humidity: 80%
Sabotage protection: yes
Power supply: Lithium battery (CR123A)

AJAX radio remote control "SpaceControl"

Dimensions (H x W x D): 65 x 37 x 10 mm
Alarm button: Yes
Number of buttons: 4
Battery life: approx. 3 years (depending on usage)
Battery type: CR2032, 3V
Operating temperature: -25 °C to +50 °C
Color: white
Radio signal power: 25 mW
Radio protocol: Jeweler (868MHz)
Weight: 13 g
Communication: wireless
Maximum humidity: 95%

Scope of delivery

1xAJAX wireless alarm center "Hub 2" (2G)
1x power cable
1x LAN cable
1x mounting bracket
1x Quick Start Guide (German)
1xAJAX wireless motion detector "MotionProtect"
1xAJAX radio magnetic contact "DoorProtect"
1xAJAX radio remote control "SpaceControl"

Downloads

📄 Kompatibilitätsliste
